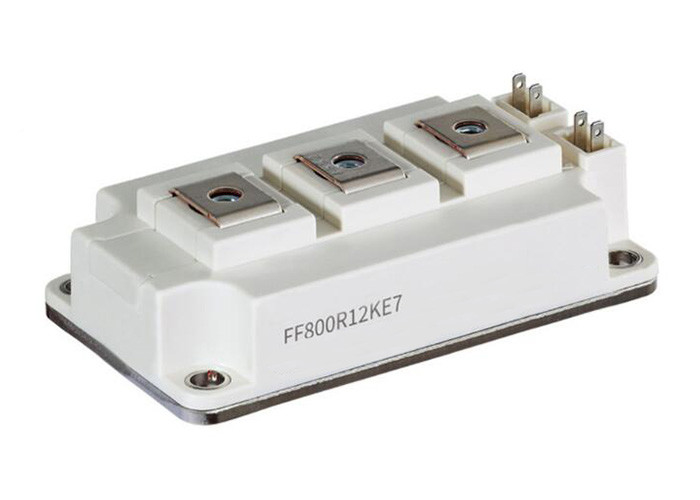

1200V Automotive IGBT Modules FF800R12KE7HPSA1 Dual IGBT Module FF800R12KE7 800A

1200V Automotive IGBT Modules FF800R12KE7HPSA1 Dual IGBT Module FF800R12KE7 800A

Overview Of FF800R12KE7HPSA1

62 mm 1200 V, 800 A dual low sat & fast trench IGBT module with TRENCHSTOP™ IGBT7 and emitter controlled 7 diode.

Parametrics Of FF800R12KE7HPSA1

Features Of FF800R12KE7HPSA1

• Highest power density
• Best-in-class VCE,sat
• Tvj op = 175°C overload
• High Creepage and Clearance Distances
• RoHS compliant
• 4 kV AC 1 min Insulation
• Package with CTI > 400
• UL/CSA Certification with UL1557 E83336

Benefits Of FF800R12KE7HPSA1

• Existing packages with higher current capability, allows to increase inverter output power with same frame size
• Highest power density
• Avoidance of paralleling of IGBT modules
• Reduced system costs by simplification of the inverter systems
• Flexibility
• Highest reliability

Applications Of FF800R12KE7HPSA1

• Commercial, construction and agricultural vehicles (CAV)
• Energy Storage Systems
• Motor control and drives
• Uninterruptible Power Supply (UPS)

Diagrams Of FF800R12KE7HPSA1
