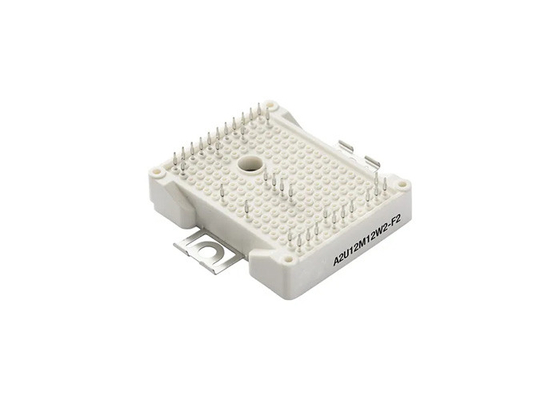

Automotive IGBT Modules A2U12M12W2-F2 3 Level Topology 1200V SiC Power MOSFET Power Module

Automotive IGBT Modules A2U12M12W2-F2 3 Level Topology 1200V SiC Power MOSFET Power Module

Description Of A2U12M12W2-F2

A2U12M12W2-F2 is power module represents a leg of a T-type 3-level inverter topology that integrates the advanced silicon carbide Power MOSFET technology. This A2U12M12W2-F2 module leverages the innovative properties of the wide-bandgap SiC material and a high-thermal-performance substrate. The result is exceptionally low on-resistance per unit area and excellent switching performance that is virtually independent of temperature.

Product Attributes Of A2U12M12W2-F2

All Features Of A2U12M12W2-F2
3-level topology
ACEPACK 2 power module
13 mΩ of typical RDS(on) each switch
Insulation voltage UL certified of 2.5 kVrms
Integrated NTC temperature sensor
DBC Cu-Al2O3-Cu based
Press fit contact pins

Electrical Topology And Pin Description Of A2U12M12W2-F2
