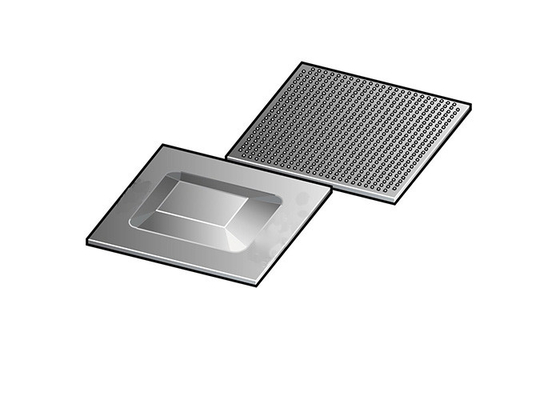

MIMX8MD6CVAHZAA Integrated Circuit Chip ARM Cortex 64 Bit Microprocessor IC

Integrated Circuit Chip MIMX8MD6CVAHZAA ARM Cortex 64-Bit Microprocessor IC

Product Description Of MIMX8MD6CVAHZAA

The MIMX8MD6CVAHZAA processors feature advanced implementation of a quad Arm®Cortex®-A53 core, which operates at speeds of up to 1.3 GHz. The MIMX8MD6CVAHZAA Dual processors have hardware acceleration for video playback up to 4K, and can drive the video outputs up to 60 fps.The MIMX8MD6CVAHZAA processors represent latest market of connected streaming audio/video devices, scanning/imaging devices, and various devices requiring high-performance, low-power processors.

Specification Of MIMX8MD6CVAHZAA

Feature Of MIMX8MD6CVAHZAA

• Number of Cores: 5 Core
• Data Bus Width: 32 bit/64 bit
• Maximum Clock Frequency: 1.3 GHz
• L1 Cache Instruction Memory: 16 kB, 32 kB
• L1 Cache Data Memory: 16 kB, 32 kB
• Operating Supply Voltage: 0.81 V to 1.05 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• GPIO modules with interrupt capability
• Input/output multiplexing controller (IOMUXC) to provide centralized pad control
• Boot ROM (128 KB)
• On-chip RAM (128 KB + 32 KB)
• Temperature sensor with programmable trip points
• Flexible power domain partitioning with internal power switches to support efficient power management

RMII mode signal timing diagram Of MIMX8MD6CVAHZAA
