8 MB S32R45 Radar Processor S32R458AASK0MUDT Automotive Radar Application 32 Bit MCU

8 MB S32R45 Radar Processor S32R458AASK0MUDT 32-bit Automotive Radar Application

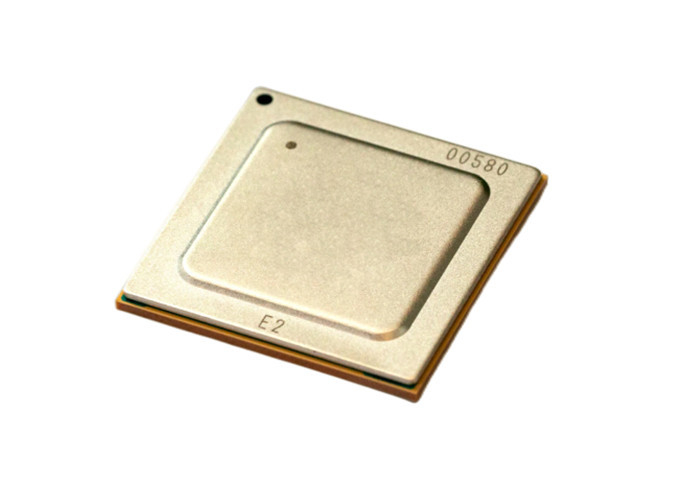

Product Description Of S32R458AASK0MUDT

S32R458AASK0MUDT is a 32-bit automotive radar microprocessor unit (MPU) based on Arm® Cortex® - A53 and Arm® Cortex® - M7 cores. Focused on advanced high resolution long-range front or rear radar sensors, providing imaging radar resolution capabilities. The high performance radar processing and power efficiency enable the latest ADAS radar applications with a dedicated processor suitable for volume adoption, while also covering industrial and consumer applications where dedicated high performance radar processing is required.

Features Of S32R458AASK0MUDT

• Quad Arm Cortex-A53 @ 800 MHz, flexible lockstep
• Triple Arm Cortex-M7 lockstep pairs @ 400 MHz
• LAX 1.0: >300 GFLOPS
• SPT 3.1 @ 600 MHz with integrated DSP and multithreading
• 8 MB SRAM with ECC
• DDR3L-1600 with 16-/32-bit support and LP-DDR4-1600/3200 with 16-/32-bit support
• HSE High
• 2 x SAR ADC 16-ch.
• 4x MIPI CSI2
• PCIe 2 x Gen2/3, 2 lanes
• 2 x GbE 10/100/1000 Mbit/s
• 8 x FlexCAN with FD
• ISO26262 SEooC ASIL B(D)
• -40 ºC to 150 °C (Tj) AEC-Q100 Grade-1

Applications Of S32R458AASK0MUDT

• Adaptive cruise control
• Autonomous emergency braking
• Blind spot detection
• Cascaded imaging radar

Package Outline Of S32R458AASK0MUDT
