S32R Automotive Radar Processor S32R458ASK0MUDT S32R45 For Radar Applications

S32R Automotive Radar Processor S32R458ASK0MUDT S32R45 For Radar Applications

Product Description Of S32R458ASK0MUDT

S32R458ASK0MUDT is a 32-bit automotive radar application MPU based on Arm® Cortex®-A53 and Cortex-M7 cores. This MPU is designed primarily for the civil automotive ADAS radar market and is well suited for a variety of industrial and consumer applications.
Designed to satisfy the latest security requirements through its HSE security engine, and meeting ASIL ISO26262 ASIL B(D) requirements, the S32R45 is the complete device for high performance radar processing.

Features Of S32R458ASK0MUDT

• Quad Arm Cortex-A53 @800 MHz, flexible lockstep
• Triple Arm Cortex-M7 lockstep pairs @400 MHz
• SPT 3.1 @600 MHz with integrated DSP and multi- threading
• Linear algebra accelerator (LAX) 1.0: > 100 GFLOPS
• 4x MIPI CSI2 to enable imaging radar with TEF82xx
• 8 MB SRAM with ECC
• DDR3L-1600 with 16/32-bit support and LP-DDR4-1600/3200 with 16/32 bit support
• In-field updatable Hardware Security Engine (HSE) with comprehensive feature set
• ISO26262 SEooC ASIL B(D)
• 2* Gen 2/3 PCIe to enable system expansion and data sharing
• 2 x Gb Ethernet 10/100/1000 Mbit/s
• 8 x FlexCAN with FD
• -40 ºC to 150 °C (Tj) AEC-Q100 grade-1

Applications Of S32R458ASK0MUDT

• Adaptive cruise control
• Autonomous emergency braking
• Blind spot detection
• Cascaded imaging radar
• Front/rear cross-traffic-functions
• Lane change assistance
• Park assist
• Reverse-AEB

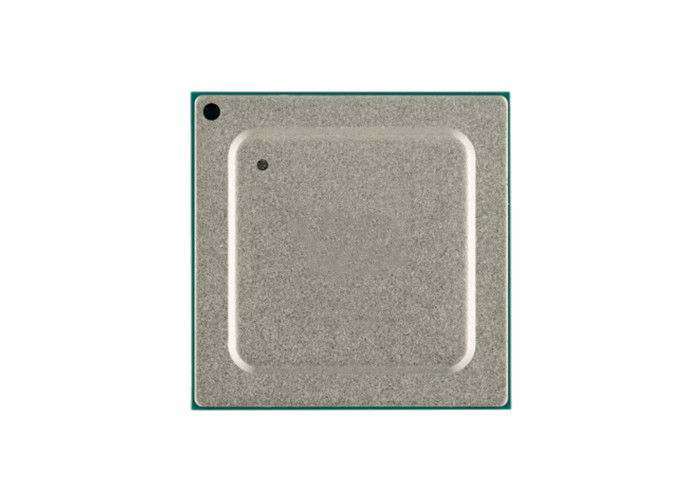

FBGA780 Package Of S32R458ASK0MUDT
