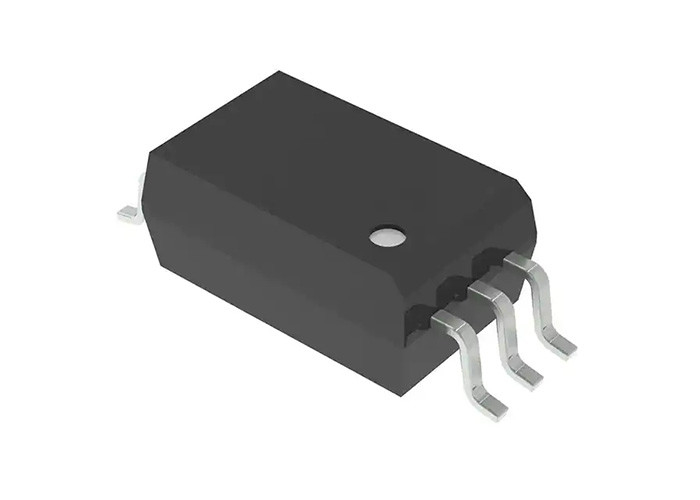

UCC23313BQDWYRQ1 Gate Driver Capacitive Coupling 3750Vrms 1 Channel 6-SOIC Package

 UCC23313BQDWYRQ1 Gate Driver Capacitive Coupling 3750Vrms 1 Channel 6-SOIC Package

Product Description Of UCC23313BQDWYRQ1

The UCC23313BQDWYRQ1 is an Opto-compatible, singlechannel, isolated gate driver for IGBTs, MOSFETs and SiC MOSFETs, with 4.5-A source and 5.3-A sink peak output current and 3.75-kVRMS basic isolation rating. The high supply voltage range of 33V allows the use of bipolar supplies to effectively drive IGBTs and SiC power FETs.UCC23313BQDWYRQ1 can drive both low side and high side power FETs.Key features and characteristics bring significant performance and reliability upgrades over standard opto-coupler based gate drivers while maintaining pin-to-pin compatibility in both schematic and layout design. Performance highlights include high common mode transient immunity (CMTI), low propagation delay, and small pulse width distortion. Tight process control results in small part-to-part skew. The input stage is an emulated diode (e-diode)which means long term reliability and excellent aging characteristics compared to traditional LEDs found in optocoupler gate drivers.

Specification Of UCC23313BQDWYRQ1

Applications Of UCC23313BQDWYRQ1

• Traction inverter for EVs
• On-board charger and DC charging station
• HVAC
• Heaters
• Industrial motor-control drives

Interlock Of UCC23313BQDWYRQ1
