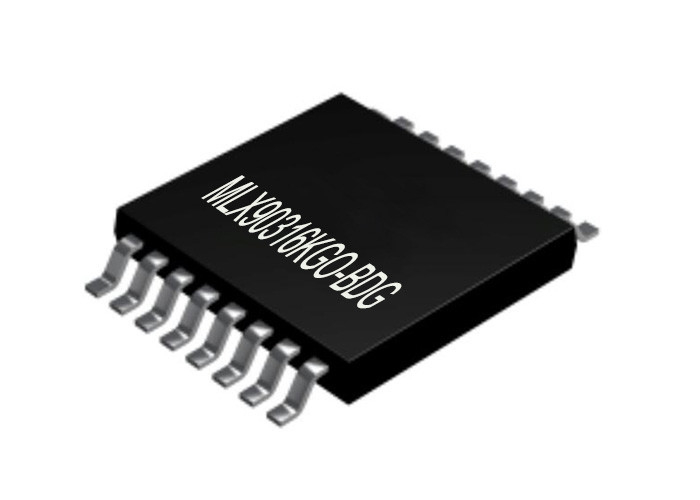

Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip

Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip
Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip
Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip

Large Image :  Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MLX90316KGO-BDG-100-RE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 16-TSSOP
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip

Description
Part Number: MLX90316KGO-BDG-100-RE Linearity: ±1°
ID Number: 40 Bit Angular Resolution: 12 Bit
Angular Thermal Accuracy: 10 Bit Programmable Angular Range: Up To 360 Degrees

Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip



Product Description Of MLX90316KGO-BDG-100-RE

MLX90316KGO-BDG-100-RE The rotation of this horizontal component is sensed over a wide range (up to 360 Deg. -complete revolution) and processed by the onchip DSP (Digital Signal Processing) to ultimately report the absolute angular position of the magnet either as a ratiometric analog output or as PWM (Pulse-Width Modulation) signal or as a 14-bit data accessible through a 3-pin SPI (serial interface) channel.

MLX90316KGO-BDG-100-RE The output transfer characteristic is fully programmable (e.g. offset, gain, clamping levels, linearity, thermal drift, filtering, range...) to match any specific requirement through end-of-line calibration.



Specification Of MLX90316KGO-BDG-100-RE

Part Number: MLX90316KGO-BDG-100-RE Output: SPI
Voltage - Supply: 4.5V ~ 5.5V Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Actuator Type: External Magnet, Not Included


Features Of MLX90316KGO-BDG-100-RE

  • Absolute Rotary Position Sensor IC
  • 40 bit ID Number
  • Dual Die (Full Redundant) – TSSOP-16 Package RoHS Compliant
  • Hall Effect Sensor Rotary Position External Magnet, Not Included Gull Wing


Applications Of MLX90316KGO-BDG-100-RE

  • Float-Level Sensor
  • Ride Height Position Sensor
  • Non-Contacting Potentiometer



Functional Diagram Of MLX90316KGO-BDG-100-RE

Rotary Position Sensor IC MLX90316KGO-BDG-100-RE TSSOP16 Integrated Circuit Chip 0



FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
