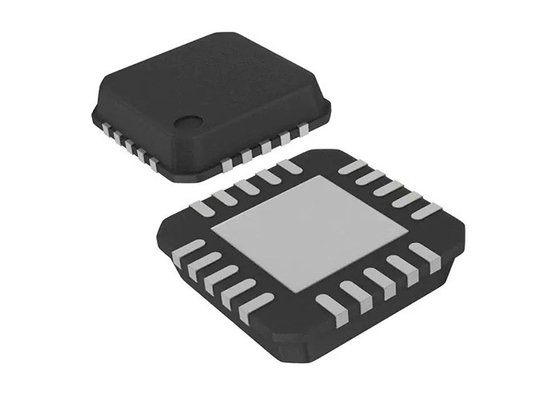

TPS7A5301WQRTKRQ1 3A High-Accuracy Automotive-Grade Low-Noise LDO Voltage Regulator

TPS7A5301WQRTKRQ1 3A High-Accuracy Automotive-Grade Low-Noise LDO Voltage Regulator

Product Description Of TPS7A5301WQRTKRQ1

The TPS7A5301WQRTKRQ1 device is a low-noise (4.4 µVRMS),low-dropout linear regulator (LDO) capable of sourcing 3 A with only 180 mV of maximum dropout.The device output voltage is adjustable from 0.8 V to 5.15 V using an external resistor divider.

Specification Of TPS7A5301WQRTKRQ1

Features Of TPS7A5301WQRTKRQ1

• Adjustable Output Voltage Range: 0.8 V to 5.15 V
• Low Dropout: 180 mV (max) at 3 A With BIAS
• Output Voltage Noise: 4.4 µVRMS
• 1% (max) Accuracy Over Line, Load, and Temperature With BIAS
• Power-Supply Ripple Rejection:– 40 dB at 500 kHz
• Adjustable Soft-Start Inrush Control
• Open-Drain Power-Good (PG) Output

Applications Of TPS7A5301WQRTKRQ1

• Telematic Control Units
• Infotainment and Clusters
• High-Speed Interfaces (PLL and VCO)

Pin Configuration and Functions Of TPS7A5301WQRTKRQ1
