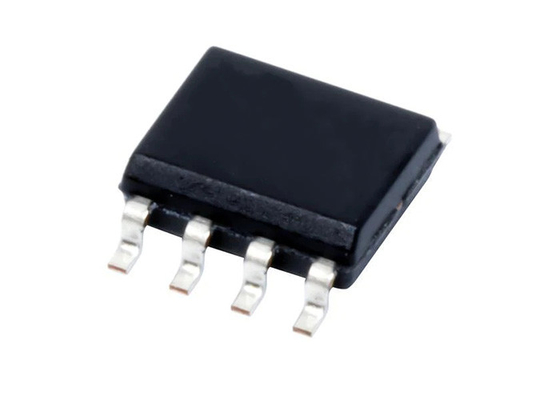

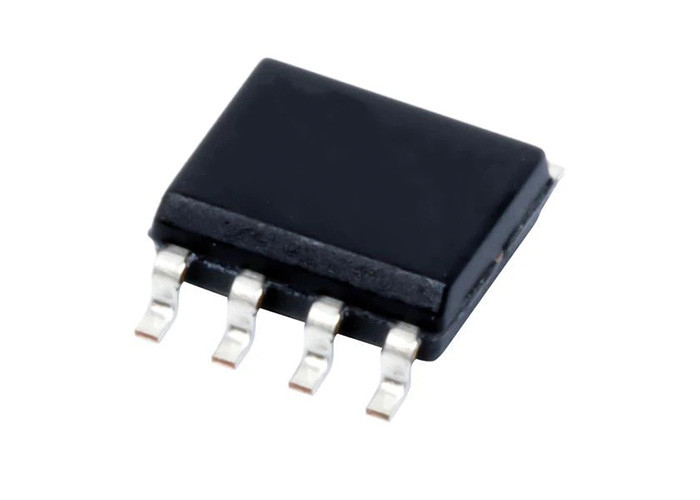

Automobile Chips ISO7320FCQDRQ1 Low Power Dual-Channel Digital Isolators

 Automobile Chips ISO7320FCQDRQ1 Low Power Dual-Channel Digital Isolators

Product Description Of ISO7320FCQDRQ1

The ISO7320FCQDRQ1 family of devices provides galvanic isolation up to 3000 VRMS for 1 minute per UL 1577 and 4242 VPK per VDE V 0884-10. These devices have two isolated channels comprised of logic input and output buffers separated by silicon dioxide (SiO2) insulation barriers.

Specification Of ISO7320FCQDRQ1

Features Of ISO7320FCQDRQ1

• Signaling Rate: 25 Mbps
• Integrated Noise Filter on the Inputs
• Default Output and Options
• Low Propagation Delay: 33 ns
• 3.3-V and 5-V Level Translation
• 65-kV/μs Transient Immunity,Typical (5-V Supplies)
• Robust Electromagnetic Compatibility (EMC)
• System-level ESD, EFT, and Surge Immunity
• Low Emissions
• Isolation Barrier Life: > 25 Years
• Operates from 3.3-V and 5-V Supplies
• Narrow Body SOIC-8 Package

Applications Of ISO7320FCQDRQ1

Opto-Coupler Replacement in:
Industrial FieldBus
ProfiBus
ModBus
DeviceNet TM Data Buses
Servo Control Interface
Motor Control
Power Supplies
Battery Packs

Functional Block Diagram Of ISO7320FCQDRQ1
