Product Description Of TPS746115PQWDRBRQ1

TPS746115PQWDRBRQ1 is a 1-A, ultra-low-dropout regulator(LDO) with power-good functionality.

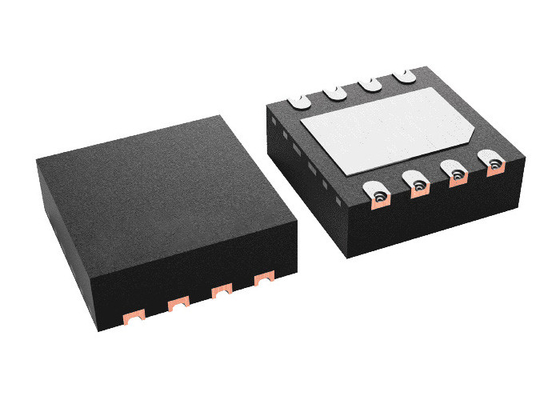

TPS746115PQWDRBRQ1 is available in a small 6-pin, 2-mm × 2-mm WSON package and a small 8-pin, 3-mm × 3-mm VSON package with wettable flanks to facilitate optical inspection.
TPS746115PQWDRBRQ1 consumes low quiescent current and provides fast line and load transient performance.
TPS746115PQWDRBRQ1 is a flexible device for post-regulation by supporting an input voltage range from 1.5 V to 6.0 V and an externally adjustable output range of 0.55 V to 5.5 V. TPS746115PQWDRBRQ1 also features fixed output voltages for powering common voltage rails.

Specification Of TPS746115PQWDRBRQ1

Features Of TPS746115PQWDRBRQ1

• Device operating junction temperature range: –40°C to +150°C
• Input voltage range: 1.5 V to 6.0 V
• High PSRR: 38 dB at 100 kHz
• Output accuracy: ±0.85% typical, ±1.5% maximum
• Power-good output options: Open-drain or push-pull
• Ultra-low dropout: – 265 mV (max) at 1 A (3.3 VOUT)
• Stable with a 1-µF or larger capacitor
• Low IQ: 25 μA (typical)
• Active output discharge
• Functional Safety-Capable Documentation available to aid functional safety system design

Applications Of TPS746115PQWDRBRQ1

• Automotive head units
• Front and rear cameras
• Automotive cluster displays
• Telematics control units
• Medium, short range radar

Typical Application: Fixed Voltage Version(TPS746115PQWDRBRQ1)

Typical Application: Adjustable Voltage Version(TPS746115PQWDRBRQ1)
