Product Description Of AMC1305L25QDWRQ1

AMC1305L25QDWRQ1 is a precision, delta-sigma (ΔΣ) modulator with the output separated from the input circuitry by a capacitive double isolation barrier that is highly resistant to magnetic interference.
AMC1305L25QDWRQ1 is optimized for direct connection to shunt resistors or other low voltage level signal sources and supports excellent dc and ac performance.

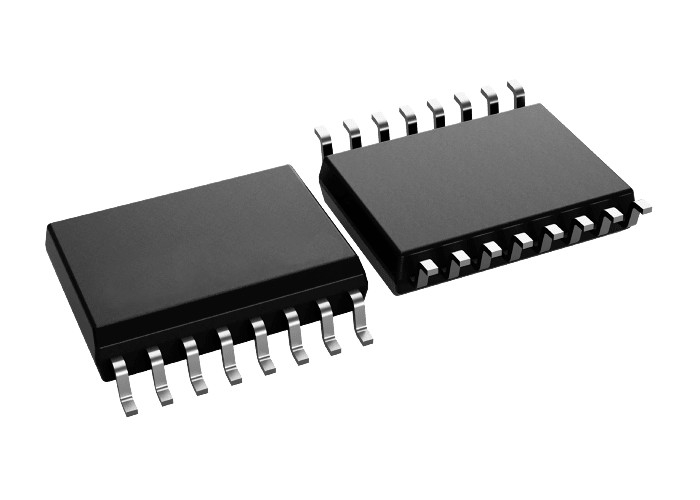

AMC1305L25QDWRQ1 is available in a wide-body SOIC16(DW) package.

Specification Of AMC1305L25QDWRQ1

Features Of AMC1305L25QDWRQ1

• Pin-Compatible Family With: ±50-mV or ±250-mV Input Voltage Ranges; CMOS or LVDS Digital Interface Options
• Excellent DC Performance
• Offset Error: ±50 µV or ±150 µV (max)
• Offset Drift: 1.3 µV/°C (max)
• Gain Error: ±0.3% (max)
• Gain Drift: ±40 ppm/°C (max)
• Safety-Related Certifications: 7000-VPK Reinforced Isolation per DIN V VDE
• Transient Immunity: 15 kV/µs (min)
• High Electromagnetic Field Immunity
• External 5-MHz to 20-MHz Clock Input

Applications Of AMC1305L25QDWRQ1

• Traction Inverters
• Onboard Chargers (OBC)
• DC-DC Converters
• Battery Management Systems (BMS)

Simplified Schematic Of AMC1305L25QDWRQ1

Pin Configurations Of AMC1305L25QDWRQ1
