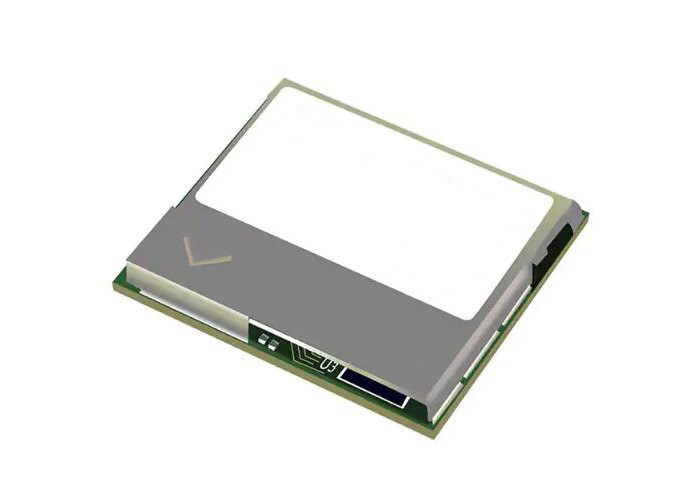

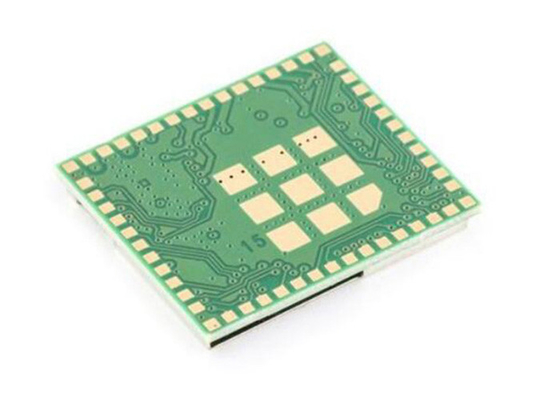

54Mbps IC Chip CC3235MODSM2MOBR 32 Bit Dual Band Wireless MCU Modules 63-SMD

54Mbps IC Chip CC3235MODSM2MOBR 32 Bit Dual Band Wireless MCU Modules 63-SMD​

Product Description Of CC3235MODSM2MOBR

CC3235MODSM2MOBR integrate the 40-MHz crystal, 32.768-kHz RTC clock, 32Mb SPI serial flash, RF filters, diplexer, and passive components.
CC3235MODSM2MOBR includes 256KB of RAM, IoT networking security, device identity and keys, and MCU-level security features such as file system encryption, user IP (MCU image) encryption, secure boot, and debug security.
CC3235MODSM2MOBR is part of the SimpleLink MCU platform—a common, easy-to-use development environment based on a single-core software development kit (SDK) with a rich tool set and reference designs.

Specification Of CC3235MODSM2MOBR

Features Of CC3235MODSM2MOBR

• Multilayered security features help developers protect identities, data, and software IP
• Low-power modes for battery-powered applications
• Coexistence with 2.4-GHz radios
• Industrial temperature: –40°C to +85°C
• 1.27-mm pitch QFM package for easy assembly and low-cost PCB design
• Advanced low-power modes
• Shutdown: 1 µA, Hibernate: 5.5 µA
• Low-power deep sleep (LPDS): 120 µA
• Idle connected (MCU in LPDS): 710 µA
• RX traffic (MCU active): 59 mA
• TX traffic (MCU active): 223 mA

Applications Of CC3235MODSM2MOBR

• Medical and Healthcare
• Multiparameter Patient Monitor
• Electrocardiogram (ECG)
• Electronic Hospital Bed & Bed Control
• HVAC Systems & Thermostat
• Video Surveillance, Video Doorbells, and Low-Power Camera

Functional Block Diagram Of CC3235MODSM2MOBR

Pin Diagram Of CC3235MODSM2MOBR
