Automobile Chips DRV5033AJQDBZRQ1 Magnetic Sensors SOT23 Digital Omnipolar Switch

Automobile Chips DRV5033AJQDBZRQ1 Magnetic Sensors SOT23 Digital Omnipolar Switch
Automobile Chips DRV5033AJQDBZRQ1 Magnetic Sensors SOT23 Digital Omnipolar Switch

Large Image :  Automobile Chips DRV5033AJQDBZRQ1 Magnetic Sensors SOT23 Digital Omnipolar Switch

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: DRV5033AJQDBZRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT-23-3
Delivery Time: 5-8 work days
Contact Now

Automobile Chips DRV5033AJQDBZRQ1 Magnetic Sensors SOT23 Digital Omnipolar Switch

Description
Part Number: DRV5033AJQDBZRQ1 Function: Omnipolar Switch
Current - Output (Max): 30mA Test Condition: -40°C ~ 125°C
Load Dump: Up To 40-V Output Type: Open Drain

Automobile Chips DRV5033AJQDBZRQ1 Magnetic Sensors SOT23 Digital Omnipolar Switch



Product Description Of DRV5033AJQDBZRQ1

DRV5033AJQDBZRQ1 is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
DRV5033AJQDBZRQ1 responds the same to both polarities of magnetic field direction. When the applied magnetic flux density exceeds the BOP threshold, DRV5033AJQDBZRQ1 open-drain output goes low.
DRV5033AJQDBZRQ1 output stays low until the field decreases to less than BRP, and then the output goes to high impedance.



Specification Of DRV5033AJQDBZRQ1

Part Number DRV5033AJQDBZRQ1
Function
Omnipolar Switch
Technology
Hall Effect
Polarization
North Pole, South Pole
Sensing Range
±12mT Trip, ±1mT Release
Test Condition
-40°C ~ 125°C
Voltage - Supply
2.7V ~ 38V
Current - Supply (Max)
2.7mA (Typ)
Current - Output (Max)
30mA
Output Type
Open Drain
Features
Temperature Compensated
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
SOT-23-3
Package / Case
TO-236-3, SC-59, SOT-23-3


Features Of DRV5033AJQDBZRQ1

  • Reverse Supply Protection (up to –22 V)
  • Supports up to 40-V Load Dump
  • Output Short-Circuit Protection
  • Output Current Limitation
  • OUT Short to Battery Protection
  • Superior Temperature Stability:BOP ±10% Over Temperature
  • Detects North and South Magnetic Field
  • Open Drain Output (30-mA Sink)
  • Fast 35-µs Power-On Time


Applications Of DRV5033AJQDBZRQ1

  • Docking Detection
  • Door Open and Close Detection
  • Proximity Sensing
  • Valve Positioning
  • Pulse Counting

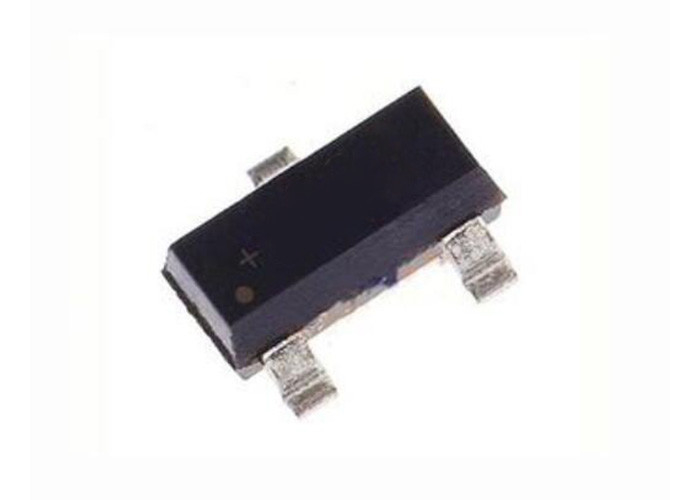

Product Photo Of DRV5033AJQDBZRQ1

Automobile Chips DRV5033AJQDBZRQ1 Magnetic Sensors SOT23 Digital Omnipolar Switch 0



Pin Configuration Of DRV5033AJQDBZRQ1

Automobile Chips DRV5033AJQDBZRQ1 Magnetic Sensors SOT23 Digital Omnipolar Switch 1



FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
