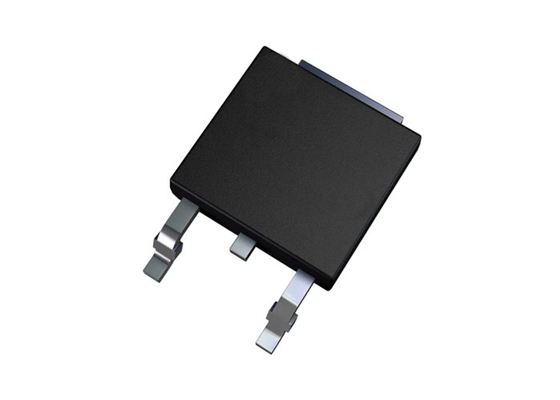

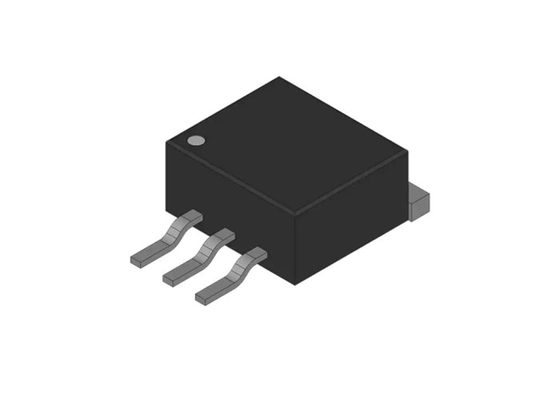

3.3V Integrated Circuit Chip LMS8117ADTX-3.3PB 1A Low-Dropout Linear Regulator

Large Image : 3.3V Integrated Circuit Chip LMS8117ADTX-3.3PB 1A Low-Dropout Linear Regulator

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LMS8117ADTX-3.3PB

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-252
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

3.3V Integrated Circuit Chip LMS8117ADTX-3.3PB 1A Low-Dropout Linear Regulator

Description

Part Number:	LMS8117ADTX-3.3PB	Output Configuration:	Positive
Number Of Regulators:	1	Voltage Dropout (Max):	1.25V @ 1A
Current - Output:	1A	Current - Quiescent (Iq):	10 MA
PSRR:	75dB (120Hz)	Operating Temperature:	0°C ~ 125°C (TJ)

3.3V Integrated Circuit Chip LMS8117ADTX-3.3PB 1A Low-Dropout Linear Regulator

Product Description Of LMS8117ADTX-3.3PB

LMS8117ADTX-3.3PB is a series of low dropout voltage regulators with a dropout of 1.2V at 1A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317.
LMS8117ADTX-3.3PB is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in two fixed voltages, 1.8V and 3.3V.
LMS8117ADTX-3.3PB offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within – 1%.

Specification Of LMS8117ADTX-3.3PB

Number of Outputs:	1 Output
Polarity:	Positive
Quiescent Current:	10 mA
Input Voltage, Min:	2.5 V
Input Voltage, Max:	15 V
PSRR / Ripple Rejection - Typ:	75 dB
Output Type:	Fixed
Dropout Voltage:	1.2 V
Dropout Voltage - Max:	1.15 V at 100 mA, 1.2 V at 500 mA, 1.25 V at 1 A
Ib - Input Bias Current:	5 mA
Load Regulation:	1 mV
Operating Supply Current:	5 mA

Features Of LMS8117ADTX-3.3PB

Available in 1.8V, 3.3V, and Adjustable Versions
Space Saving SOT-223 and TO-252 Packages
Current Limiting and Thermal Protection
Output Current 1A
Temperature Range 0 ̊C to 125 ̊C
Line Regulation 0.2% (Max)
Load Regulation 0.4% (Max)

Applications Of LMS8117ADTX-3.3PB

Post Regulator for Switching DC/DC Converter
High Efficiency Linear Regulators
Battery Charger
Battery Powered Instrumentation

Typical Application Of LMS8117ADTX-3.3PB

3.3V Integrated Circuit Chip LMS8117ADTX-3.3PB 1A Low-Dropout Linear Regulator 0

Connection Diagrams Of LMS8117ADTX-3.3PB

3.3V Integrated Circuit Chip LMS8117ADTX-3.3PB 1A Low-Dropout Linear Regulator 1
