5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter

5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter
5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter
5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter 5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter 5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter

Large Image :  5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LM53600LQDSXRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WSON-10
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter

Description
Part Number: LM53600LQDSXRQ1 Output Voltage: 5 V
Output Current: 650 MA Input Voltage, Min: 3.55 V
Input Voltage, Max: 36 V Switching Frequency: 2.1 MHz

5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter



Product Description Of LM53600LQDSXRQ1

LM53600LQDSXRQ1 synchronous buck regulator devices are optimized for automotive applications, providing an output voltage of 5 V, 3.3 V, or an adjustable output. Load current up to 650 mA is supported by the LM53600LQDSXRQ1. Advanced high-speed circuitry allows the devices to regulate from an input of 18 V to an output of 3.3 V at a fixed frequency of 2.1 MHz. Innovative architecture allows the device to regulate a 3.3-V output from an input voltage of only 3.8 V. The input voltage range up to 36 V, with transient tolerance of up to 42 V, eases input surge protection design. An open drain reset output, with filtering and delayed release, provides a true indication of system status. This feature negates the requirement for an additional supervisory component, saving cost and board space. Seamless transitions between PWM and PFM modes, along with a quiescent current of only 23 µA, ensures high efficiency and superior transient response at all loads.



Specification Of LM53600LQDSXRQ1

Part Number
LM53600LQDSXRQ1
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Fixed
Number of Outputs
1
Voltage - Input (Min)
3.8V
Voltage - Input (Max)
36V
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
10-WFDFN Exposed Pad
Supplier Device Package
10-WSON (3x3)



Features Of LM53600LQDSXRQ1

  • Qualified for automotive applications
  • AEC-Q100 qualified with the following results:
  • Device temperature grade 1: –40°C to 125°C ambient operating temperature range
  • –40°C to 150°C junction temperature range (available)
  • Wide operating input voltage: 3.55 V to 36 V (with transient to 42 V)
  • Spread spectrum option available
  • 2.1-MHz fixed switching frequency
  • Low quiescent current: 23 µA
  • Shutdown current: 1.8 µA
  • Adjustable, 3.3-V, or 5-V output
  • Maximum current load: 650 mA for LM53600-Q1
  • Pin-selectable forced PWM mode
  • RESET output with filter and delay release
  • External frequency synchronization
  • Internal compensation, soft start, current limit, and UVLO
  • 10-lead, 3-mm × 3-mm SON package with wettable and non-wettable flanks



Applications Of LM53600LQDSXRQ1

  • Automotive camera applications
  • Automotive driver assistance systems
  • Automotive body applications

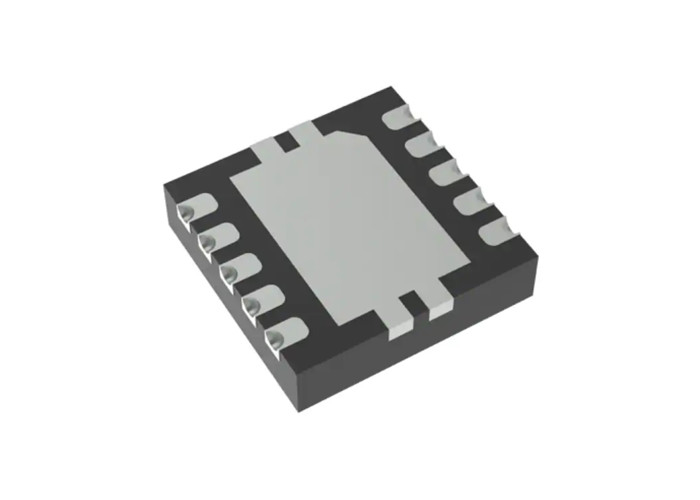

Simplified Diagram Of LM53600LQDSXRQ1

5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter 0

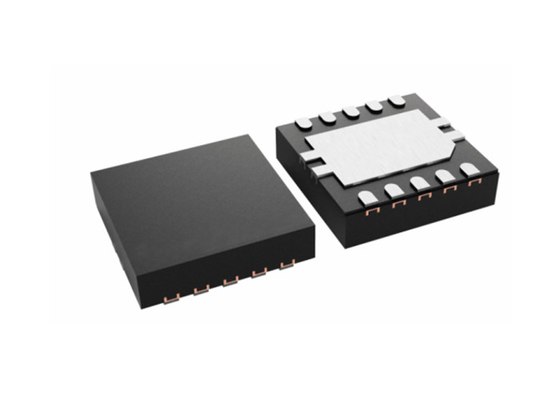

Package 10-Pin WSON Of LM53600LQDSXRQ1

5V Automobile Chips LM53600LQDSXRQ1 650mA Automotive Step Down DC DC Converter 1
