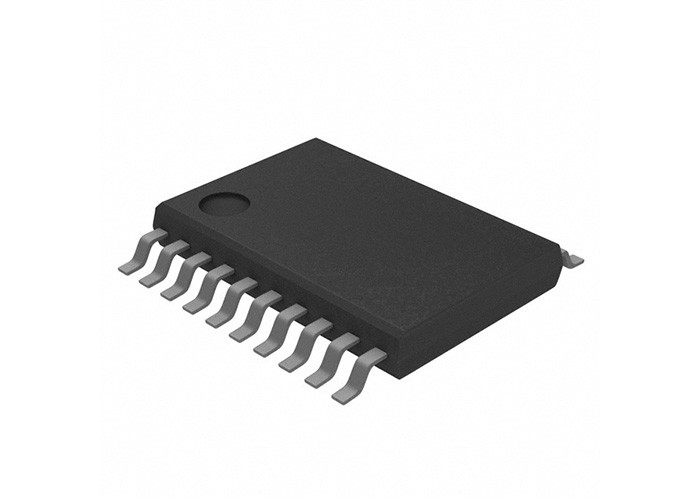

Automobile Chips ADS131B04QPWRQ1 24 Bit Analog to Digital Converter 20-TSSOP Package

Automobile Chips ADS131B04QPWRQ1 24 Bit Analog to Digital Converter 20-TSSOP Package

Product Description Of ADS131B04QPWRQ1

The ADS131B04QPWRQ1 is a four-channel, simultaneoussampling, 24bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) that offers wide dynamic range, low power, and buffered analog inputs, making the device an excellent fit for automotive battery management systems (BMS). The ADC inputs can be directly interfaced to shunt resistors for bidirectional batterycurrent measurements, to resistor-divider networks for high-voltage measurements, or to temperature sensors (such as thermistors or analog output temperature sensors).

Specification Of ADS131B04QPWRQ1

Features Of ADS131B04QPWRQ1

• 4 simultaneous-sampling, differential input ADCs

• Programmable data rate: Up to 32 kSPS

• Programmable gain: Up to 128

• Global-chop mode to remove offset drift over temperature and time

• High-impedance analog inputs for direct sensor connection

• Integrated negative charge pump allows input signal measurements below ground

• Crosstalk between channels: –120 dB

• Low-drift internal reference: 1.2 V

• Precision internal oscillator

• CRC on communications and register map

• Analog and digital supplies: 2.7 V to 3.6 V

• Low power consumption: 5 mW at 3.3-V AVDD and DVDD

Applications Of ADS131B04QPWRQ1

• Automotive battery management systems (BMS)
• Current-shunt measurements
• Voltage measurements using external resistor dividers
• Temperature measurements using thermistors or analog output temperature sensors
• EV charging stations
• DC e-metering
• Energy storage systems (ESS)

Digital Filter Implementation Of ADS131B04QPWRQ1
