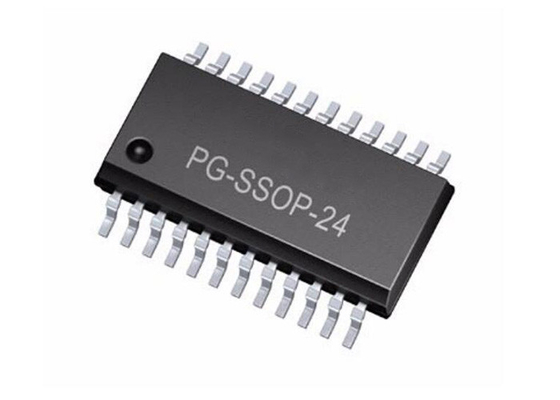

TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC

TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC
TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC
TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC

Large Image :  TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TLE8444SL
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SSOP-24
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC

Description
Part Number: TLE8444SL Operating Temperature(Min): -40°C
Current - Output: 1A Voltage - Supply: 8V ~ 18V
Overcurrent Shutdown(Min): 0.9A Operating Temperature(Max): 150°C (TJ)

TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC​



Product Description Of TLE8444SL

TLE8444SL is a protected Quad-Half-Bridge-IC targeted towards automotive and industrial motion control applications. TLE8444SL is a monolithic die based on smart mixed technology SPT which combines bipolar and CMOS control circuitry with DMOS power devices. DC-Motors can be driven in forward (cw), reverse (ccw), brake and high impedance modes where as StepperMotors can be driven in No-Current, negative / positive output current modes. These various modes can easily be achieved via standard parallel interface of the device to a microcontroller.



Specification Of TLE8444SL

Part Number TLE8444SL
Motor Type - Stepper
Bipolar, Unipolar
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
Parallel
Technology
BiCDMOS
Applications
Automotive
Current - Output
1A
Voltage - Supply
8V ~ 18V
Voltage - Load
8V ~ 18V
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
24-SSOP (0.154", 3.90mm Width)
Supplier Device Package
PG-SSOP-24-7


Features Of TLE8444SL

  • 4 Half-Bridge Power Outputs (1.3Ω RDS(ON)MAX @ Tj=150°C)
  • Minimum Overcurrent Shutdown at 0.9A
  • Simple parallel interface control of Half-Bridge Outputs
  • Inverted and Non-inverted Inputs to minimize number of microcontroller connections
  • Very low current consumption in sleep mode (max. 5µA)
  • Error Flag Diagnosis
  • Open Load Diagnosis in ON-state for all outputs
  • Outputs protected against overcurrent
  • Over temperature protection with hysteresis
  • Over and Under voltage lockout
  • 3.3V / 5V compatible inputs with hysteresis
  • No crossover current
  • Internal freewheeling diodes
  • Thermally enhanced package (fused leads)



Applications Of TLE8444SL

  • Unipolar or Bipolar Loads
  • Stepper Motors (e.g. Idle Speed Control)
  • DC brush Motors



Block Diagram Of TLE8444SL

TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC 0



Pin Assignment Of TLE8444SL

TLE8444SL Integrated Circuit Chip Quad Half-Bridge Driver IC SSOP24 Motor Driver IC 1
