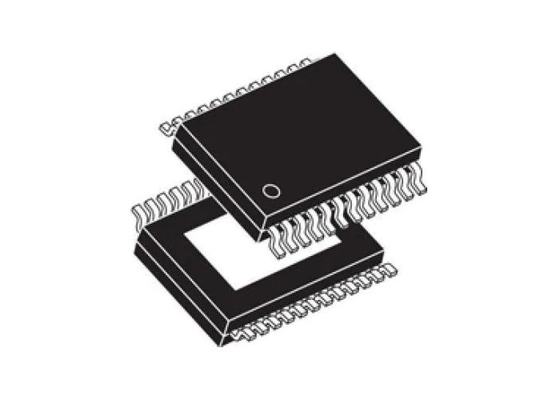

Power Switch IC VNI4140KTR 700mA Power Distribution Quad Hi Side Smart Power SS Relay

Power Switch IC VNI4140KTR 700mA Power Distribution Quad Hi Side Smart Power SS Relay

Product Description Of VNI4140KTR

The VNI4140KTR is a monolithic device made using VIPower technology, intended to drive four independent resistive or inductive loads with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shutdown protects the chip from overtemperature and short-circuit.

Specification Of VNI4140KTR

Features Of VNI4140KTR

• Output current: 0.7 A per channel
• Shorted load protections
• Junction overtemperature protection
• Case overtemperature protection for thermal independence of the channels
• Thermal case shutdown restart not simultaneous for the various channels
• Protection against loss of ground
• Current limitation
• Undervoltage shutdown
• Open drain diagnostic outputs
• 3.3 V CMOS/TTL compatible inputs
• Fast demagnetization of inductive loads
• Conforms to IEC 61131-2
• ESD according to IEC 61000-4-2 up to +/-25 kV

Block Diagram Of VNI4140KTR

Pin Connection Of VNI4140KTR
