AD7606BSTZ 16-Bit 200kSPS 8-Channel Synchronous Data Acquisition System ADC Integrated Circuit Chip LQFP64

AD7606BSTZ 16-Bit 200kSPS 8-Channel Synchronous Data Acquisition System ADC Integrated Circuit Chip LQFP64
AD7606BSTZ 16-Bit 200kSPS 8-Channel Synchronous Data Acquisition System ADC Integrated Circuit Chip LQFP64 AD7606BSTZ 16-Bit 200kSPS 8-Channel Synchronous Data Acquisition System ADC Integrated Circuit Chip LQFP64

Large Image :  AD7606BSTZ 16-Bit 200kSPS 8-Channel Synchronous Data Acquisition System ADC Integrated Circuit Chip LQFP64

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD7606BSTZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP64
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

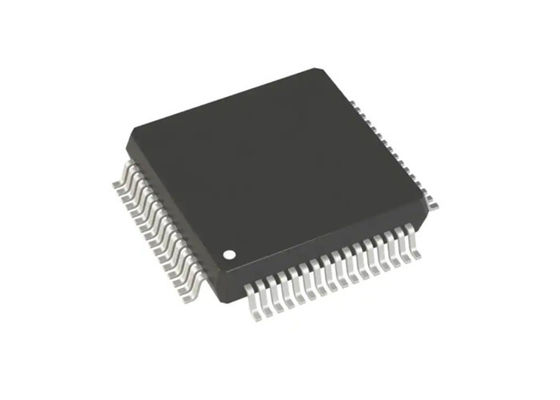

AD7606BSTZ 16-Bit 200kSPS 8-Channel Synchronous Data Acquisition System ADC Integrated Circuit Chip LQFP64

Description
Part Number: AD7606BSTZ Number Of Channels: 8
Resolution (Bits): 16 B Sampling Rate (Per Second): 200k
Voltage - Supply: 2.3V ~ 5.25V, 4.75V ~ 5.25V Operating Temperature: -40°C ~ 85°C
Highlight:

16-Bit ADC

,

200kSPS Data Acquisition System

,

8-Channel Integrated Circuit Chip

AD7606BSTZ Integrated Circuit Chip 16-Bit Synchronous Data Acquisition System LQFP64
Product Description
The AD7606BSTZ is a 16-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS) with eight, six, and four channels. It features analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, a 16-bit charge redistribution successive approximation ADC, a flexible digital filter, a 2.5 V reference and reference buffer, and high-speed serial and parallel interfaces.
The AD7606BSTZ operates from a single 5 V supply and accommodates ±10 V and ±5 V true bipolar input signals with sampling rates up to 200 kSPS for all channels. The input clamp protection tolerates voltages up to ±16.5 V, and the device features a 1 MΩ analog input impedance regardless of sampling frequency. The integrated design eliminates the need for external driver op amps and bipolar supplies.
The antialiasing filter has a 3 dB cutoff frequency of 22 kHz and provides 40 dB antialias rejection at 200 kSPS. The digital filter improves SNR and reduces the 3 dB bandwidth.
Specifications
Series AD7606BSTZ
Interface Type Parallel, SPI
Sampling Rate 200 kS/s
Input Type Single-Ended
Architecture SAR
SNR - Signal to Noise Ratio 95.5 dB
DNL - Differential Nonlinearity +/- 0.99 LSB
Gain Error +/- 32 LSB
Height 1.4 mm
INL - Integral Nonlinearity +/- 2 LSB
Input Voltage +/- 5 V/+/- 10 V
Length 10 mm
Number of ADC Inputs 8 Input
Number of Converters 1 Converter
Operating Supply Voltage 5 V
Pd - Power Dissipation 142 mW
Power Consumption 100 mW
Features
  • 8/6/4 simultaneously sampled inputs
  • True bipolar analog input ranges: ±10 V, ±5 V
  • Pin to pin compatible with the state-of-the-art AD7606B
  • Single 5 V analog supply and 2.3 V to 5 V VDRIVE
  • Fully integrated data acquisition solution
  • Analog input clamp protection
  • Input buffer with 1 MΩ analog input impedance
  • Second-order antialiasing analog filter
  • On-chip accurate reference and reference buffer
  • 16-bit ADC with 200 kSPS on all channels
  • Oversampling capability with digital filter
  • Flexible parallel/serial interface
  • SPI/QSPI™/MICROWIRE™/DSP compatible
  • 7 kV ESD rating on analog input channels
  • 95.5 dB SNR, −107 dB THD
  • ±0.5 LSB INL, ±0.5 LSB DNL
  • Low power: 100 mW
  • Standby mode: 25 mW
  • Temperature range: −40°C to +85°C
  • 64-lead LQFP package
Applications
  • Power-line monitoring and protection systems
  • Multiphase motor control
  • Instrumentation and control systems
  • Multiaxis positioning systems
  • Data acquisition systems (DAS)
Functional Block Diagram
AD7606BSTZ 16-Bit 200kSPS 8-Channel Synchronous Data Acquisition System ADC Integrated Circuit Chip LQFP64 0
Pin Configuration
AD7606BSTZ 16-Bit 200kSPS 8-Channel Synchronous Data Acquisition System ADC Integrated Circuit Chip LQFP64 1
