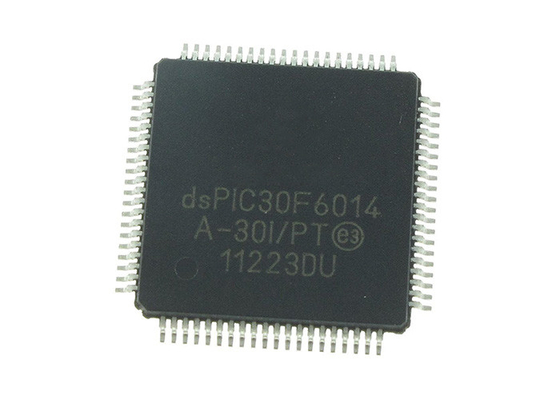

Integrated Circuit Chip DSPIC30F6014A-30I/PT High-Performance 16-bit Digital Signal Controllers

Integrated Circuit Chip DSPIC30F6014A-30I/PT High-Performance 16-bit Digital Signal Controllers

Product Description Of DSPIC30F6014A-30I/PT

The DSPIC30F6014A-30I/PT is General Purpose 16-bit Digital Signal Controller,30 MIPs 144KB (48K x 24) FLASH 80-TQFP (12x12).

Specification Of DSPIC30F6014A-30I/PT

Features Of DSPIC30F6014A-30I/PT

• High-Performance dsPIC30F core

• Modified Harvard architecture

• C compiler optimized instruction set architecture

• 24-bit wide instructions, 16-bit wide data path

• Up to 30 MIPS operation

• DSP Engine for math intensive operations

• Modulo and Bit-Reversed Addressing modes

• Two, 40-bit wide accumulators with optional saturation logic

• 17-bit x 17-bit single cycle hardware fractional/ integer multiplier

• Single cycle Multiply-Accumulate (MAC) operation

• 40-stage Barrel Shifter

• Dual data fetch

• Operating Conditions

• Wide operating voltage range (2.5V to 5.5V)

• Industrial and Extended temperature ranges

• Peripheral Features

• High current sink/source I/O pins: 25 mA/25 mA

• Optionally pair up 16-bit timers into 32-bit timer modules

• 3-wire SPI™ modules (supports 4 Frame modes)

• I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing

• Addressable UART modules with FIFO buffers and selectable pins

• Two CAN bus modules compliant with CAN 2.0B standard

Pin Diagrams Of DSPIC30F6014A-30I/PT
