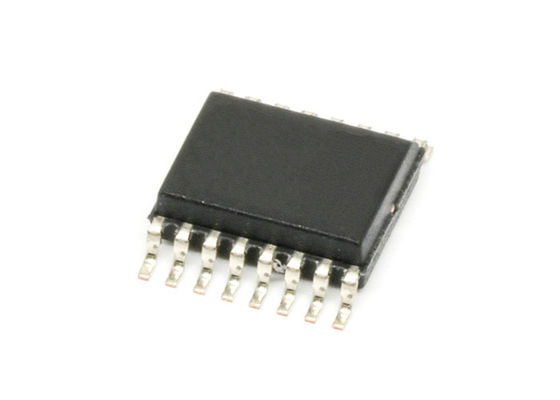

AD5235BRUZ25 Integrated Circuit Chip with Nonvolatile Memory Dual 1024-Position Digital Potentiometer 25 kOhms

AD5235BRUZ25 Integrated Circuit Chip with Nonvolatile Memory Dual 1024-Position Digital Potentiometer 25 kOhms
AD5235BRUZ25 Integrated Circuit Chip with Nonvolatile Memory Dual 1024-Position Digital Potentiometer 25 kOhms
AD5235BRUZ25 Integrated Circuit Chip with Nonvolatile Memory Dual 1024-Position Digital Potentiometer 25 kOhms AD5235BRUZ25 Integrated Circuit Chip with Nonvolatile Memory Dual 1024-Position Digital Potentiometer 25 kOhms AD5235BRUZ25 Integrated Circuit Chip with Nonvolatile Memory Dual 1024-Position Digital Potentiometer 25 kOhms

Large Image :  AD5235BRUZ25 Integrated Circuit Chip with Nonvolatile Memory Dual 1024-Position Digital Potentiometer 25 kOhms

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD5235BRUZ25
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 16-TSSOP
Delivery Time: 5-8 work days
Contact Now

AD5235BRUZ25 Integrated Circuit Chip with Nonvolatile Memory Dual 1024-Position Digital Potentiometer 25 kOhms

Description
Part Number: AD5235BRUZ25 Resistance: 25 KOhms
Temperature Coefficient: 35 PPM / C Tolerance: 8 %
Operating Supply Voltage: 2.7 V Operating Supply Current: 3.5 UA
Highlight:

Nonvolatile Memory Integrated Circuit Chip

,

1024-Position Digital Potentiometer

,

25 kOhms IC Chip

AD5235BRUZ25 Integrated Circuit Chip Nonvolatile Memory Dual 1024-Position Digital Potentiometer
Product Overview Of AD5235

The AD5235 is a dual-channel, nonvolatile memory, digitally controlled potentiometer with 1024-step resolution, offering guaranteed maximum low resistor tolerance error of ±8%. The device performs the same electronic adjustment function as a mechanical potentiometer with enhanced resolution, solid state reliability, and superior low temperature coefficient performance.

Specifications Of AD5235
Number of Circuits 2
Number of Taps 1024
Resistance (Ohms) 25k
Interface SPI
Memory Type Non-Volatile
Voltage - Supply 2.7V ~ 5V, ±2.25V ~ 2.75V
Features Cascade Pin
Tolerance ±8%
Temperature Coefficient (Typ) 35ppm/°C
Key Features Of AD5235
  • Dual-channel, 1024-position resolution
  • 25 kΩ, 250 kΩ nominal resistance
  • Maximum ±8% nominal resistor tolerance error
  • Low temperature coefficient: 35 ppm/°C
  • 2.7 V to 5 V single supply or ±2.5 V dual supply
  • SPI-compatible serial interface
  • Nonvolatile memory stores wiper settings
  • Power-on refreshed with EEMEM settings
  • Permanent memory write protection
  • Resistance tolerance stored in EEMEM
  • 26 bytes extra nonvolatile memory for user-defined information
  • 1M programming cycles
  • 100-year typical data retention
Applications Of AD5235
  • DWDM laser diode driver, optical supervisory systems
  • Mechanical potentiometer replacement
  • Instrumentation: gain, offset adjustment
  • Programmable voltage-to-current conversion
  • Programmable filters, delays, time constants
  • Programmable power supply
  • Low resolution DAC replacement
  • Sensor calibration
Product Tags

AD5235BRUZ25, AD5235BRUZ2, AD5235BRUZ, AD5235BRU, AD5235BR, AD5235B, AD5235

Bipolar Programmable Gain Amplifier
Bipolar Programmable Gain Amplifier circuit diagram for AD5235BRUZ25
