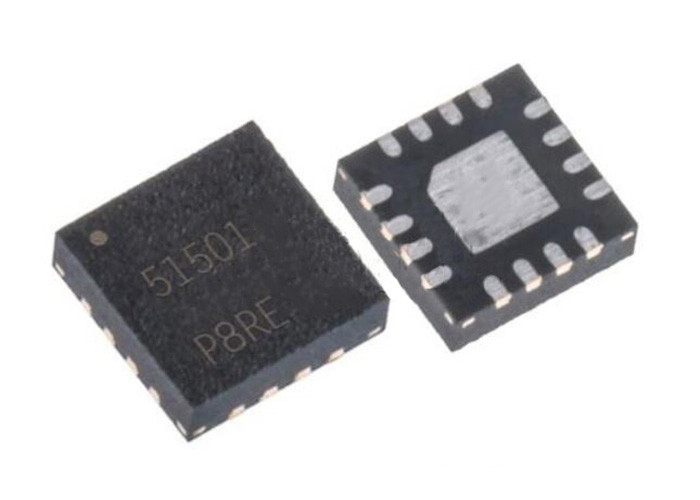

Automobile Chips LM51501QRUMTQ1 Wide VIN Automotive Low IQ Boost Controller QFN16

Automobile Chips LM51501QRUMTQ1 Wide VIN Automotive Low IQ Boost Controller QFN16​

Product Description Of LM51501QRUMTQ1

LM51501QRUMTQ1 is a wide input range automatic boost controller. The device can be used to maintain a stable output voltage during automotive cranking from a vehicle battery or from a backup battery.
LM51501QRUMTQ1 switching frequency is programmed by a resistor from 220 kHz to 2.3 MHz. Fast switching (≥ 2.2 MHz) minimizes AM band interference and allows for a small solution size and fast transient response.
LM51501QRUMTQ1 operates in low IQ standby mode when the input or output voltage is above the preset standby thresholds and automatically wakes up when the output voltage drops below the preset wake-up threshold.

Specification Of LM51501QRUMTQ1

Features Of LM51501QRUMTQ1

• Wide VIN input range from 1.5 V to 42 V when
• VOUT ≥ 5 V (65-V absolute maximum)
• Low shutdown current (IQ ≤ 5 µA)
• Low standby current (IQ ≤ 15 µA)
• Four programmable output voltage options and two selectable configurations
• 6.0 V, 6.5 V, 9.5 V, or 11.5 V
• Start-stop or e-call configurations
• Adjustable switching frequency from 220 kHz to 2.3 MHz
• Automatic wake-up and standby mode transition
• Optional clock synchronization
• Boost status indicator
• 1.5-A peak MOSFET gate driver
• Adjustable cycle-by-cycle current limit

Applications Of LM51501QRUMTQ1

• Automotive start-stop system
• Automotive emergency call system
• Battery-powered boost converters

Typical Application Circuit Of LM51501QRUMTQ1

Pin Configuration Of LM51501QRUMTQ1
