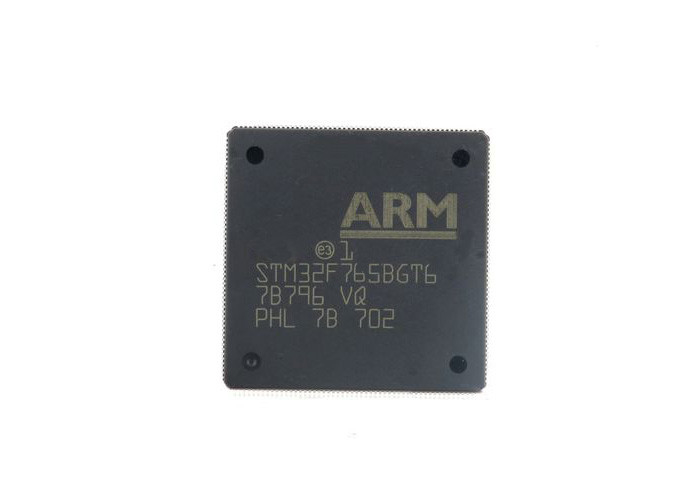

STM32F765BGT6 216MHz 1MB FLASH ARM Microcontroller IC 208-LQFP Package

STM32F765BGT6 216MHz 1MB FLASH ARM Microcontroller IC 208-LQFP Package

Product Description Of STM32F765BGT6

STM32F765BGT6 devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers, a true random number generator (RNG).STM32F765BGT6 is high-performance and DSP with FPU, Arm Cortex-M7 MCU with 1 Mbyte of Flash memory, 216 MHz CPU, Art Accelerator, L1 cache, SDRAM, DFSDM.

Specification Of STM32F765BGT6

Features Of STM32F765BGT6

• Up to 28 communication interfaces
• Up to 4 I2C interfaces (SMBus/PMBus)
• Up to 4 USARTs/4 UARTs (12.5 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
• Up to 6 SPIs (up to 54 Mbit/s), 3 with muxed simplex I2S for audio
• 2 x SAIs (serial audio interface)
• 3 × CANs (2.0B Active) and 2x SDMMCs
• SPDIFRX interface
• HDMI-CEC
• MDIO slave interface

STM32F765BGT6 feature standard and advanced communication interfaces

• Up to four I2Cs
• Six SPIs, three I2Ss in half-duplex mode. To achieve audio class accuracy, the I2S peripherals can be clocked via a dedicated internal audio PLL or via an external clock to allow synchronization.
• Four USARTs plus four UARTs
• An USB OTG full-speed and a USB OTG high-speed with full-speed capability (with the ULPI)
• Three CANs
• Two SAI serial audio interfaces

Internal reset OFF Of STM32F765BGT6

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
