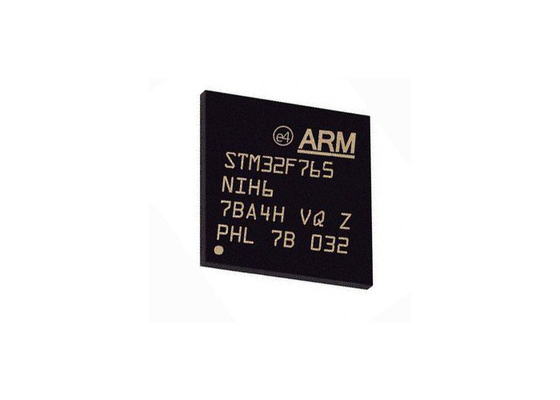

High-Performance STM32F765NIH6 DSP With FPU Arm Cortex-M7 Microcontroller IC

High-Performance STM32F765NIH6 DSP With FPU Arm Cortex-M7 Microcontroller IC

Product Description Of STM32F765NIH6

STM32F765NIH6 features a floating point unit (FPU) which supports Arm® double-precision and single-precision data processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances the application security.

Specification Of STM32F765NIH6

Features Of STM32F765NIH6

• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
• Up to 18 timers: up to thirteen 16-bit (1x lowpower 16-bit timer available in Stop mode) and two 32-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature(incremental) encoder input. All 15 timers running up to 216 MHz. 2x watchdogs, SysTick timer
• Debug mode

I/O Current Injection Characteristics Of STM32F765NIH6
As a general rule, a current injection to the I/O pins, due to external voltage below VSS or above VDD (for standard, 3 V-capable I/O pins) should be avoided during the normal product operation. However, in order to give an indication of the robustness of the microcontroller in cases when an abnormal injection accidentally happens, susceptibility tests are performed on a sample basis during the device characterization.

JTAG Timing Diagram Of STM32F765NIH6

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
