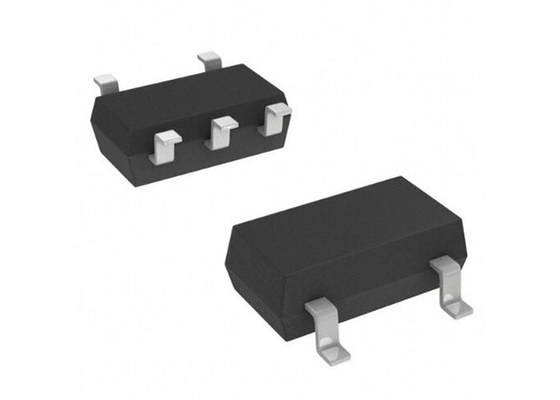

70mOhm Load Drivers IC RT9742FGJ5 High Side Power Switches With Flag TSOT-23-5

70mOhm Load Drivers IC RT9742FGJ5 High Side Power Switches With Flag TSOT-23-5​

Product Description Of RT9742FGJ5

RT9742FGJ5 is a cost-effective, low-voltage, single N-MOSFET high-side Power Switch IC for USB application. Low switch-on resistance and low supply current are realized in this IC.
RT9742FGJ5 integrates an over-current protection circuit, a short fold back circuit, a thermal shutdown circuit and an under-voltage lockout circuit for overall protection.
The RT9742FGJ5 is an ideal solution for USB power supply and can support flexible applications.

Specification Of RT9742FGJ5

Features Of RT9742FGJ5

• 70mΩ/55mΩ (typ.) N-MOSFET Switch
• Operating Range : 2.7V to 6V
• Reverse Blocking Current
• Under Voltage Lockout
• Deglitched Fault Report (FLG)
• Thermal Protection with Fold-back
• Over Current Protection
• Short Circuit Protection

Applications Of RT9742FGJ5

• USB Peripherals
• Notebook PCs

Simplified Application Circuit Of RT9742FGJ5

Pin Configuration Of RT9742FGJ5

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
