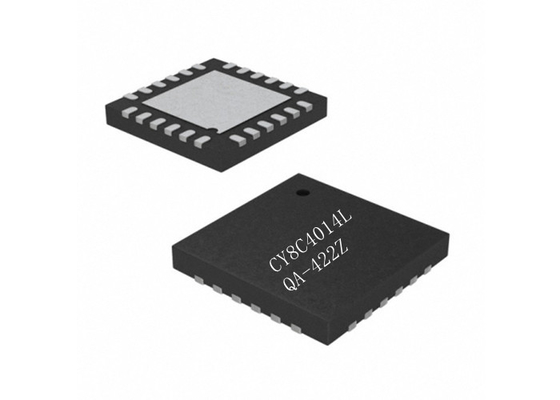

Integrated Circuit Chip CY8C4014LQA-422Z 32BIT 16KB ARM Cortex-M0 Microcontroller IC

Integrated Circuit Chip CY8C4014LQA-422Z 32BIT 16KB ARM Cortex-M0 Microcontroller IC

Product Description Of CY8C4014LQA-422Z

CY8C4014LQA-422Z PSoC 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0 CPU, while being AEC-Q100 compliant. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing.
CY8C4014LQA-422Z PSoC 4000 product family is the smallest member of the PSoC 4 platform architecture. It is a combination of a microcontroller with standard communication and timing peripherals, a capacitive touch-sensing system (CapSense®) with best-in-class performance, and general-purpose analog.
CY8C4014LQA-422Z PSoC 4000 products will be fully upward compatible with members of the PSoC 4 platform for new applications and design needs.

Specification Of CY8C4014LQA-422Z

Features Of CY8C4014LQA-422Z

• 32-bit MCU Subsystem
• 16-MHz Arm® Cortex®-M0 CPU
• Up to 16 KB of flash with Read Accelerator
• Up to 2 KB of SRAM
• Two current DACs (IDACs) for general-purpose or capacitive sensing applications
• One low-power comparator with internal reference
• Low Power 1.71-V to 5.5-V operation
• Deep Sleep mode with wake-up on interrupt and I2C address detect
• signal-to-noise ratio (SNR) and water tolerance
• Automatic hardware tuning (SmartSense™)
• Multi-master I2C block with the ability to do address matching during Deep Sleep and generate a wake-up on match Timing and Pulse-Width Modulation
• One 16-bit Timer/Counter/Pulse-Width Modulator (TCPWM) block
• Center-aligned, Edge, and Pseudo-Random modes
• Comparator-based triggering of Kill signals for motor drive and other high-reliability digital logic applications
• Up to 20 Programmable GPIO Pins
• 24-pin QFN and 16-pin SOIC packages
• GPIO pins on Ports 0, 1, and 2 can be CapSense or have other functions
• Drive modes, strengths, and slew rates are programmable
• Temperature Ranges:A Grade: –40 °C to +85 °C
