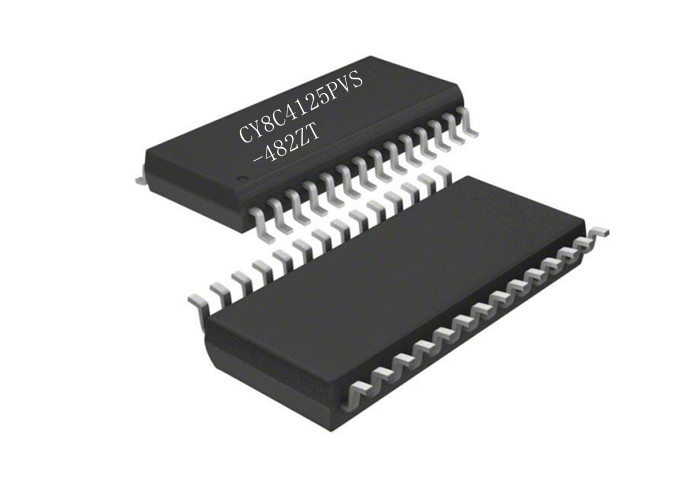

IC MCU 32BIT 32KB CY8C4125PVS-482ZT PSoC 4100M Arm Microcontrollers 28-SSOP

IC MCU 32BIT 32KB CY8C4125PVS-482ZT PSoC 4100M Arm Microcontrollers 28-SSOP

Product Description Of CY8C4125PVS-482ZT

CY8C4125PVS-482ZT PSoC® 4100M Arm® Microcontrollers are a family of programmable embedded system controllers with an Arm® Cortex™-M0 CPU. These microcontrollers combine programmable and reconfigurable analog and digital blocks with flexible automatic routing.
CY8C4125PVS-482ZT PSoC4100M Arm Microcontrollers have a 24MHz Arm Cortex-M0 CPU with a single-cycle multiply and up to 128kb of flash and read accelerator. These microcontrollers are compatible with members of the PSoC4 platform for applications and design needs.

Specification Of CY8C4125PVS-482ZT

Features Of CY8C4125PVS-482ZT

• 32-bit MCU subsystem
• 24MHz Arm Cortex-M0 CPU with single-cycle multiply
• Up to 128kB of flash with Read Accelerator
• Up to 16kB of SRAM
• Four opamps that operate in Deep Sleep mode at very low current levels
• All opamps have reconfigurable high current pin-drive, high-bandwidth internal drive, ADC input buffering, and comparator modes with flexible connectivity allowing input connections to any pin
• Four current DACs (IDACs) for general-purpose or capacitive sensing applications on any pin
• Two low-power comparators that operate in Deep Sleep mode
• 12-bit SAR ADC with 806Ksps conversion rate
• Low power 1.71V to 5.5V operation
• 20nA stop mode with GPIO pin wakeup
• Hibernate and Deep Sleep modes allow wakeup-time versus power trade offs
• Automatic hardware tuning (SmartSense™)
• LCD drive supported on all pins (common or segment)
• Operates in Deep Sleep mode with 4 bits per pin memory
• Four independent run-time reconfigurable serial communication blocks (SCBs) with reconfigurable I2C, SPI, or UART functionality
• Timing and pulse-width modulation
• Eight 16 bit timer/counter pulse-width modulator (TCPWM) blocks Center-aligned, Edge, and Pseudo-random modes
• Comparator-based triggering of Kill signals for motor drive and other high-reliability digital logic applications
