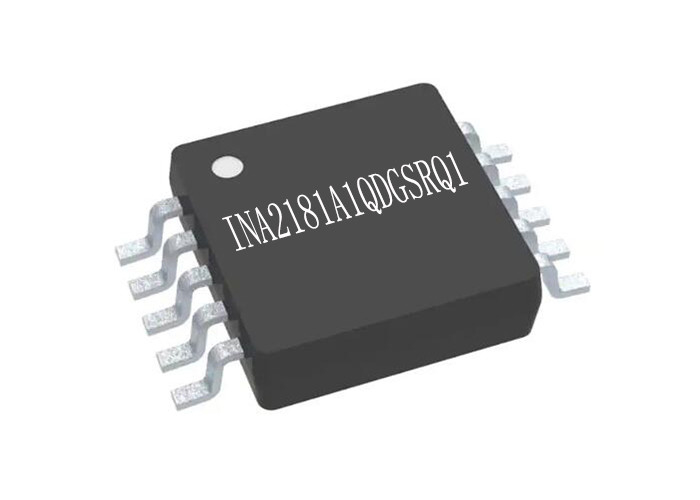

Automobile Chips INA2181A1QDGSRQ1 Current Sense Amplifiers Chip VSSOP10

Automobile Chips INA2181A1QDGSRQ1 Current Sense Amplifiers Chip VSSOP10

Product Description Of INA2181A1QDGSRQ1

INA2181A1QDGSRQ1 current sense amplifiers are designed for cost-optimized applications. INA2181A1QDGSRQ1 is part of a family of bidirectional, current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at common-mode voltages from –0.2 V to +26 V, independent of the supply voltage.
INA2181A1QDGSRQ1 integrates a matched resistor gain network in four, fixed-gain device options: 20 V/V, 50 V/V, 100 V/V, or 200 V/V. This matched gain resistor network minimizes gain error and reduces the temperature drift.
INA2181A1QDGSRQ1 operate from a single 2.7-V to 5.5-V power supply. The single-channel INA2181A1QDGSRQ1 draws a maximum supply current of 260 µA; whereas, the dual-channel INA2181A1QDGSRQ1 draws a maximum supply current of 500 µA, and the quad-channel INA2181A1QDGSRQ1 draws a maximum supply current of 900 µA.

Specification Of INA2181A1QDGSRQ1

Features Of INA2181A1QDGSRQ1

• Functional Safety-Capable, Documentation available to aid functional safety system design
• Common-mode range (VCM): –0.2 V to +26 V
• High bandwidth: 350 kHz (A1 devices)
• Offset voltage:±150 µV (maximum) at VCM = 0 V
• Offset voltage:±500 µV (maximum) at VCM = 12 V
• Output slew rate: 2 V/µs
• Bidirectional current-sensing capability
• Accuracy:– ±1% gain error (maximum)
• Accuracy:– 1-µV/°C offset drift ( maximum)

Applications Of INA2181A1QDGSRQ1

• Motor control
• Battery monitoring
• Power management
• Lighting control
• Overcurrent detection

Typical Application Circuit​ Of INA2181A1QDGSRQ1
