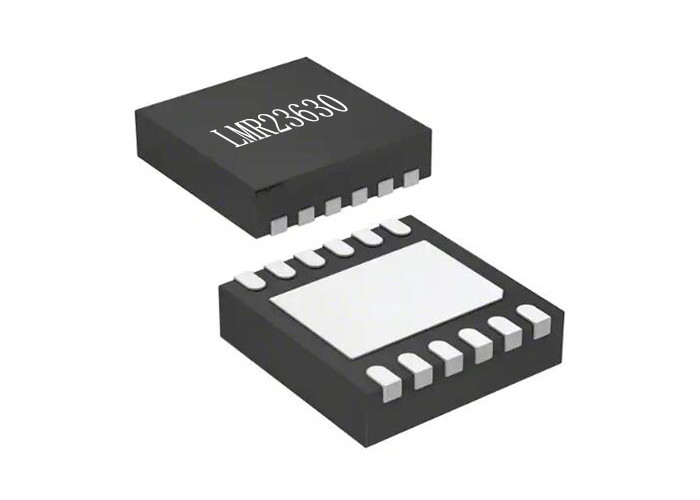

36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter

36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter
36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter
36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter 36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter

Large Image :  36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LMR23630APQDRRTQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 12-SON (3x3)
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter

Description
Part Number: LMR23630APQDRRTQ1 Voltage - Input (Min): 4V
Voltage - Output (Min/Fixed): 1V Current - Output: 3A
Frequency - Switching: 400kHz Mounting Type: Surface Mount, Wettable Flank

36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter



Product Description Of LMR23630APQDRRTQ1

LMR23630APQDRRTQ1 SIMPLE SWITCHER® is an easyto-use 36-V, 3-A synchronous step-down regulator. With a wide input range from 4 V to 36 V, LMR23630APQDRRTQ1 is suitable for various applications from industrial to automotive for power conditioning from unregulated sources. Peak-current-mode control is employed to achieve simple control-loop compensation and cycleby-cycle current limiting.



Specification Of LMR23630APQDRRTQ1

Part Number LMR23630APQDRRTQ1
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4V
Voltage - Input (Max)
36V
Voltage - Output (Min/Fixed)
1V
Voltage - Output (Max)
28V
Current - Output
3A
Frequency - Switching
400kHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount, Wettable Flank
Package / Case
12-WFDFN Exposed Pad
Supplier Device Package
12-SON (3x3)



Features Of LMR23630APQDRRTQ1

  • 4V to 36V Input Range
  • 3A Continuous Output Current
  • Minimum Switch-On Time: 60 ns
  • Internal Compensation for Ease of Use
  • 400 kHz Switching Frequency and Adjustable Switching Frequency Options
  • PFM and Forced PWM Mode Options at Light Load
  • Frequency Synchronization to External Clock
  • 75µA Quiescent Current at No Load for PFM Option
  • Power-Good Option
  • Soft Start into a Prebiased Load
  • High Duty-Cycle Operation Supported
  • Output Short-Circuit Protection With Hiccup Mode



Applications Of LMR23630APQDRRTQ1

  • Automotive Infotainment: Clusters, Head Unit, Heads-Up Display
  • USB Charging
  • General Off-Battery Power Applications



Simplified Schematic Of LMR23630APQDRRTQ1​

36V Power Management IC LMR23630APQDRRTQ1 3A Synchronous Step Down Converter 0
