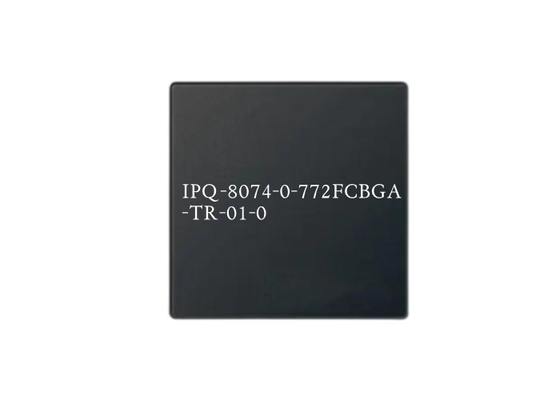

End-To-End 802.11ax Chip Wi-Fi IPQ-8074-0-772FCBGA-TR-01-0 Router BGA Packge

End-To-End 802.11ax Wi-Fi IPQ-8074-0-772FCBGA-TR-01-0 Router WiFi 6 Chip BGA Packge

Product Description Of IPQ-8074-0-772FCBGA-TR-01-0

IPQ-8074-0-772FCBGA-TR-01-0 is a highly integrated SoC designed to deliver maximum capacity, widest coverage and optimal performance for next-generation enterprise access points, carrier gateways and consumer routers.

• Up to 4x capacity to maximise network performance: Leveraging a 12x12 configuration, uplink and downlink MU-MIMO, and support for eight 80 MHz data streams, the IPQ8074 enables up to four times more network capacity*, delivers up to 4.8 Gbps and maintains fast connectivity over a wider coverage area.
• Smart features for seamless connectivity: In addition to Wi-Fi SON (Self-Organising Network) technology that simplifies installation, optimises data traffic and reduces blind spots, the IPQ8074 offers unique features to reduce harmful interference in dense areas with multiple overlapping Wi-Fi access points.
• All-in-one platform: Integrated 11ax RF, MAC and baseband, plus a quad-core 64-bit A53 CPU with dual-core network accelerator to deliver a fully load-sharing 11ax subsystem. 14nm design offers power and size advantages, while extensive external wide area network (WAN) and media interfaces enable customers to build a complete 802.11ax portfolio.

Specification Of IPQ-8074-0-772FCBGA-TR-01-0

Features Of IPQ-8074-0-772FCBGA-TR-01-0

• Atheros IPQ8074 quad-core Arm Cortex A53 processor
• 2.2GHz CPU
• System Memory – 1GB (2x 512MB) DDR3L RAM (Option for up to 4GB)
• Storage – 8GB eMMC flash, 32MB NOR Flash, 256MB NAND flash, 1x micro SD Card socket
• 5x Gigabit Ethernet (1GbE) RJ45 ports
• 1x 10Gigabit Ethernet (10GbE) RJ45 port
• 1x SFP+ Port
• On-board 4×4 2.4GHz MU-MIMO 802.11b/g/n/ax WiFi 6 up to 1147Mbps
• On-board 2x(4×4) or 8×8 5GHz MU-MIMO 802.11a/n/ac/ax WiFI 6 up to 4804Mbps
• 12x U.FL connectors
• Cellular – M.2 B-key socket with PCIe 3.0 interface for 5G Module
• Optional Bluetooth module, optional ZigBee module
• USB – 2x USB 3.0 ports
• Display – LCD display header, touchpad connector
• Serial – 12-pin connector
• Expansion – 1x MiniPCIe slot with PCIe 2.0, 1x Audio/SLIC header,
• Debugging – 20-pin JTAG connector
• Misc – 2x hardware reset buttons, 1x WPS reset button, 1x buzzer; 13x LED indicators plus 2 additional LED on Ethernet ports
• Power Supply – 12V/5A DC via DC jack connector
• Dimensions – 200 x 160 x 18mm
