Product Description Of 5M240ZT144C5N

5M240ZT144C5N devices accept 1.8 V on their VCCINT pins. The 1.8-V VCCINT external supply powers the device core directly. MAX V devices operate internally at 1.8 V. The supported MultiVolt I/O interface voltage levels (VCCIO) are 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V.
5M240ZT144C5N devices are available in two speed grades: –4 and –5, with –4 being the fastest. For commercial applications, speed grades –C4 and –C5 are available. For industrial and automotive applications, speed grade –I5 and –A5 are available, respectively.

Specification Of 5M240ZT144C5N

Features Of 5M240ZT144C5N

• Low-cost, low-power, and non-volatile CPLD architecture
• Instant-on (0.5 ms or less) configuration time
• Standby current as low as 25 µA and fast power-down/reset operation
• Single 1.8-V external supply for device core
• Fast propagation delay and clock-to-output times
• Four global clocks with two clocks available per logic array block (LAB)
• User flash memory block up to 8 Kbits for non-volatile storage with up to 1000 read/write cycles
• MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, 1.5-V, and 1.2-V logic levels
• Bus-friendly architecture including programmable slew rate, drive strength,
• bus-hold, and programmable pull-up resistors
• Schmitt triggers enabling noise tolerant inputs (programmable per pin)
• I/Os are fully compliant with the PCI-SIG® PCI Local Bus Specification, revision 2.2 for 3.3-V operation

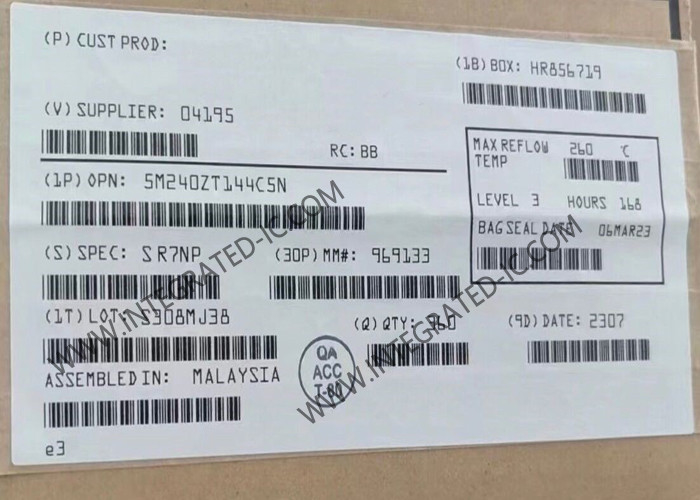

Product Photo Of 5M240ZT144C5N

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
