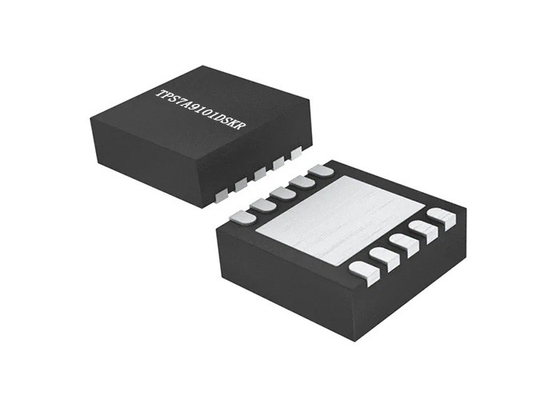

Integrated Circuit Chip TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator

Integrated Circuit Chip TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator

Product Description Of TPS7A9101DSKR

The TPS7A9101DSKR is a low-noise (4.7 µVRMS), low-dropout(LDO) voltage regulator capable of sourcing 1 A with only 200 mV of maximum dropout.
The TPS7A9101DSKR output is adjustable with external resistors from 0.8 V to 5.2 V. The TPS7A91 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V.

Specification Of TPS7A9101DSKR

Features Of TPS7A9101DSKR

• 1.0% Accuracy Over Line, Load, and Temperature

• Low Output Noise: 4.7 µVRMS (10 Hz–100 kHz)

• Low Dropout: 200 mV (max) at 1 A

• Wide Input Voltage Range: 1.4 V to 6.5 V

• Wide Output Voltage Range: 0.8 V to 5.2 V

• High Power-Supply Ripple Rejection (PSRR)

• Fast Transient Response

• Adjustable Start-Up In-Rush Control with Selectable Soft-Start Charging Current

• Open-Drain Power-Good (PG) Output

• 2.5-mm × 2.5-mm, 10-Pin SON Package

Applications Of TPS7A9101DSKR

• High-Speed Analog Circuits:VCO, ADC, DAC, LVDS

• Imaging: CMOS Sensors, Video

• Test and Measurement

• Instrumentation, Medical, and Audio

• Digital Loads: SerDes, FPGA, DSP

Typical Application Circuit Of TPS7A9101DSKR

Typical Application Diagram Of TPS7A9101DSKR
