TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator with 1A Output Current

TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator with 1A Output Current
TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator with 1A Output Current
TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator with 1A Output Current TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator with 1A Output Current TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator with 1A Output Current

Large Image :  TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator with 1A Output Current

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS7A9101DSKR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 10-WFDFN
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TPS7A9101DSKR High-Accuracy Low-Noise LDO Voltage Regulator with 1A Output Current

Description
Part Number: TPS7A9101DSKR Output Voltage Range: 800 MV To 5.2 V
Operating Temperature Range: - 4 Dropout Voltage: 130 MV
Mounting Type: Surface Mount Package: 10-WFDFN Exposed Pad

TPS7A9101DSKR Integrated Circuit Chip High-Accuracy Low-Noise LDO Voltage Regulator
Product Description

The TPS7A9101DSKR is a low-noise (4.7 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 1 A with only 200 mV of maximum dropout. The TPS7A9101DSKR output is adjustable with external resistors from 0.8 V to 5.2 V. The TPS7A91 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V.

Specifications
Part Number TPS7A9101DSKR
Number of Regulators 1
Voltage - Input (Max) 6.5V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 5.2V
Voltage Dropout (Max) 0.2V @ 1A
Current - Output 1.05A
PSRR 40dB (1MHz)
Operating Temperature -40°C ~ 125°C (TJ)
Features
  • 1.0% Accuracy Over Line, Load, and Temperature
  • Low Output Noise: 4.7 µVRMS (10 Hz-100 kHz)
  • Low Dropout: 200 mV (max) at 1 A
  • Wide Input Voltage Range: 1.4 V to 6.5 V
  • Wide Output Voltage Range: 0.8 V to 5.2 V
  • High Power-Supply Ripple Rejection (PSRR)
  • Fast Transient Response
  • Adjustable Start-Up In-Rush Control with Selectable Soft-Start Charging Current
  • Open-Drain Power-Good (PG) Output

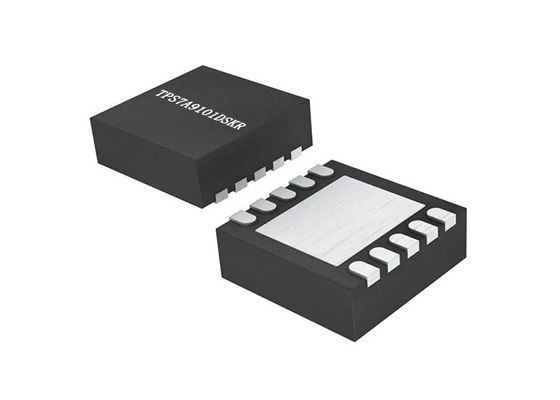

  • 2.5-mm × 2.5-mm, 10-Pin SON Package
Applications
  • High-Speed Analog Circuits: VCO, ADC, DAC, LVDS
  • Imaging: CMOS Sensors, Video
  • Test and Measurement
  • Instrumentation, Medical, and Audio
  • Digital Loads: SerDes, FPGA, DSP
Typical Application Circuit
TPS7A9101DSKR Typical Application Circuit Diagram
Typical Application Diagram
TPS7A9101DSKR Typical Application Schematic Diagram
