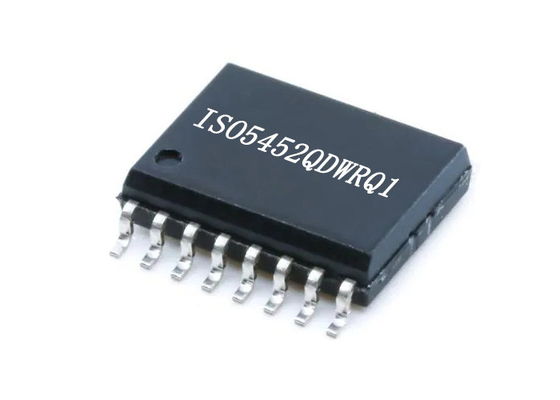

ISO5452QDWRQ1 2.7A 5.5A Gate Driver IC Capacitive Coupling 5700Vrms 1 Channel 16-SOIC

ISO5452QDWRQ1 2.7A 5.5A Gate Driver Capacitive Coupling 5700Vrms 1 Channel 16-SOIC

Product Description Of ISO5452QDWRQ1

ISO5452QDWRQ1 is a 5.7-kVRMS, reinforced isolated gate driver for IGBTs and MOSFETs with split outputs, OUTH and OUTL, providing 2.5-A source and 5-A sink current. The input side operates from a single 2.25-V to 5.5-V supply.

Specification Of ISO5452QDWRQ1

Features Of ISO5452QDWRQ1

• Split Outputs to provide 2.5-A Peak Source and 5-A Peak Sink Currents

• Short Propagation Delay: 76 ns (Typ),110 ns (Max)

• 2-A Active Miller Clamp

• Output Short-Circuit Clamp

• Soft Turn-Off (STO) during Short Circuit

• Input and Output Undervoltage Lockout (UVLO) With Ready (RDY) Pin Indication

• Active Output Pulldown and Default Low Outputs With Low Supply or Floating Inputs

• 2.25-V to 5.5-V Input Supply Voltage

• 15-V to 30-V Output Driver Supply Voltage

• CMOS Compatible Inputs

• Rejects Input Pulses and Noise Transients Shorter Than 20 ns

Applications Of ISO5452QDWRQ1

• Isolated IGBT and MOSFET Drives

• HEV and EV Power Modules

• Industrial Motor Control Drives

• Industrial Power Supplies

• Solar Inverters

• Induction Heating

Functional Block Diagram Of ISO5452QDWRQ1
