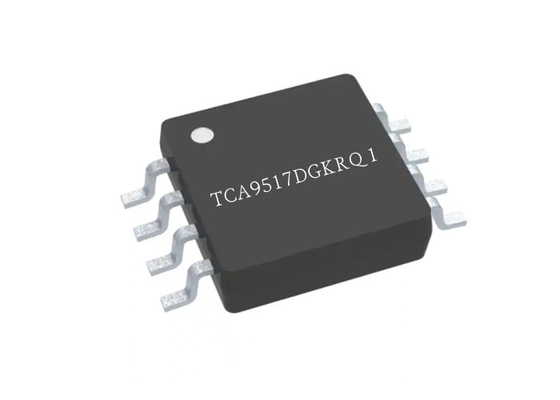

1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP

1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP
1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP
1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP 1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP

Large Image :  1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TCA9517DGKRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-VSSOP
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP

Description
Part Number: TCA9517DGKRQ1 Interface Type: I2C
Maximum Clock Frequency: 400 KHz Ciss - Input Capacitance: 13 PF
Number Of Channels: 2 Channel Operating Supply Current: 1.5 MA

1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP



Product Description Of TCA9517DGKRQ1

TCA9517DGKRQ1 is a bidirectional buffer with level shifting capabilities for I2C and SMBus systems. It supplies bidirectional voltage-level translation (up-translation and/or down-translation) between low voltages (down to 0.9 V) and higher voltages (2.7 V to 5.25 V) in mixed-mode applications. This device enables I2C and SMBus systems to be extended without loss of performance, even during level shifting.

TCA9517DGKRQ1 buffers both the serial data (SDA) and the serial clock (SCL) signals on the I2C bus, thus allowing two buses of up to 400-pF bus capacitance to be connected in an I2C application.


Specification Of TCA9517DGKRQ1
Part Number TCA9517DGKRQ1
Translator Type
Voltage Level
Channel Type
Bidirectional
Number of Circuits
1
Channels per Circuit
2
Voltage - VCCA
0.9 V ~ 5.25 V
Voltage - VCCB
2.7 V ~ 5.25 V
Operating Temperature
-40°C ~ 125°C (TA)

Features Of TCA9517DGKRQ1
  • AEC-Q100 Qualified for automotive applications
  • Device temperature: –40°C to 125°C TA
  • Device HBM classification Level: ±5500-V
  • Device CDM classification Level: ±1000-V
  • Two-channel bidirectional buffer
  • I2C Bus and SMBus compatible
  • Operating Supply Voltage Range of 0.9-V to 5.25-V on A-side
  • Operating supply voltage range of 2.7-V to 5.25-V on B-side
  • Voltage-level translation from 0.9-V to 5.25-V and 2.7-V to 5.25-V
  • Active-high repeater-enable input
  • Open-drain I2C I/O
  • 5.25-V tolerant I2C and enable input support mixed-mode signal operation
  • Accommodates standard mode and fast mode I2C devices and multiple controller
  • High-impedance I2C pins when powered-off
  • Latch-up performance exceeds 100 mA Per JESD 78, class II

Applications Of TCA9517DGKRQ1
  • Servers
  • Routers (telecom switching equipment)
  • Industrial equipment
  • Products with Many I2C targets and/or long PCB traces

Simplified Schematic Of TPS7A8300RGWR
1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP 0

Pin Configurations Of TPS7A8300RGWR
1 Circuit 2 Channel TCA9517DGKRQ1 Voltage Level Translator Bidirectional 8-VSSOP 1

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
