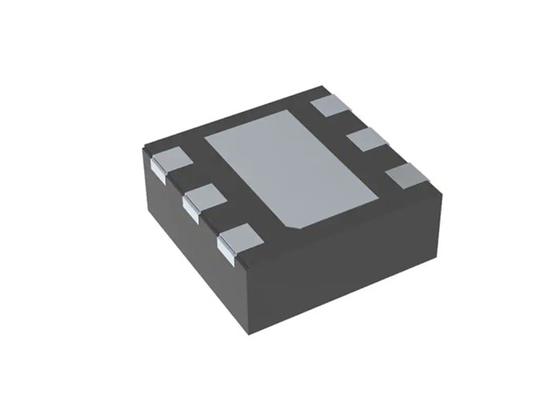

TPS74612PQWDRVRQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 1A 6-WSON

TPS74612PQWDRVRQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 1A 6-WSON

Product Description Of TPS74612PQWDRVRQ1
TPS74612PQWDRVRQ1 is a 1-A, ultra-low-dropout regulator (LDO) with power-good functionality. This device is available in a small 6-pin, 2-mm × 2-mm WSON package with wettable flanks to facilitate optical inspection.
TPS74612PQWDRVRQ1 is a flexible device for post-regulation by supporting an input voltage range from 1.5 V to 6.0 V and an externally adjustable output range of 0.55 V to 5.5 V. The device also features fixed output voltages for powering common voltage rails.
TPS74612PQWDRVRQ1 has a power-good (PG) output that monitors the voltage at the feedback pin to indicate the status of the output voltage. The EN input and PG output can be used for sequencing multiple power supplies in the system.
TPS74612PQWDRVRQ1 is stable with small ceramic output capacitors, allowing for a small overall solution size. A precision band-gap and error amplifier provides high accuracy of ±0.85% (max) at 25°C and ±1.5% (max) over temperature. This device includes integrated thermal shutdown, current limit, and undervoltage lockout (UVLO) features.

Specification Of TPS74612PQWDRVRQ1

Features Of TPS74612PQWDRVRQ1

• 1.5V to 6.0V Input voltage range
• 0.55V to 5.5V Adjustable output voltage
• 225mV (max) at 1A (3.3 VOUT) Very low dropout
• High output accuracy:0.7%, Typical
• 1%, Maximum over temperature (85°C)
• Open-drain power-good output
• Power-good rising delay:TPS746: 165µs
• IQ: 25µA (Typical)
• Built-in soft-start with monotonic VOUT rise
• Package: 2mm×2mm 6-pin WSON (DRV)
• Active output discharge

Applications Of TPS74612PQWDRVRQ1

• Set-top boxes, gaming consoles
• Home theater and entertainment
• Desktops, notebooks, ultrabooks
• Printers
• Servers
• Thermostat and lighting controls
• Electronic Point of Sale (EPOS)

Functional Diagram Of TPS74612PQWDRVRQ1

Pin Configurations Of TPS74612PQWDRVRQ1
