60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC

60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC
60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC
60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC 60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC

Large Image :  60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS54360BQDDAQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-PowerSOIC (0.154", 3.90mm Width)
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC

Description
Part Number: TPS54360BQDDAQ1 Operating Quiescent Current: 146uA
Shutdown Current: 2 UA Adjustable Switching Frequency: 100kHz To 2.5MHz
Operating Temperature: -40°C ~ 150°C (TJ) Topology: Buck, Split Rail

60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC​



Product Description Of TPS54360BQDDAQ1

TPS54360BQDDAQ1 is a 60-V 3.5-A step-down regulator with an integrated high-side MOSFET.
TPS54360BQDDAQ1 survives load dump pulses up to 65 V per ISO7637. Current mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load supply current to 146 μA. Shutdown supply current is reduced to 2 μA when the enable pin is pulled low.



Specification Of TPS54360BQDDAQ1

Part Number TPS54360BQDDAQ1
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
60V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
58.8V
Current - Output
3.5A
Frequency - Switching
100kHz ~ 2.5MHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 150°C (TJ)



Features Of TPS54360BQDDAQ1

  • High Efficiency at Light Loads With Pulse Skipping Eco-Mode™
  • 92-mΩ High-Side MOSFET
  • 146-μA Operating Quiescent Current and 2 µA Shutdown Current
  • 100-kHz to 2.5-MHz Adjustable Switching Frequency
  • Synchronizes to External Clock
  • Low Dropout at Light Loads With Integrated BOOT Recharge FET
  • Adjustable UVLO Voltage and Hysteresis
  • 0.8-V 1% Internal Voltage Reference
  • 8-Pin HSOP With PowerPAD™ Package
  • –40°C to 150°C TJ Operating Range



Applications Of TPS54360BQDDAQ1

  • USB Dedicated Charging Ports and Battery Chargers
  • Industrial Automation and Motor Controls



Simplified Schematic Of TPS54360BQDDAQ1

60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC 0

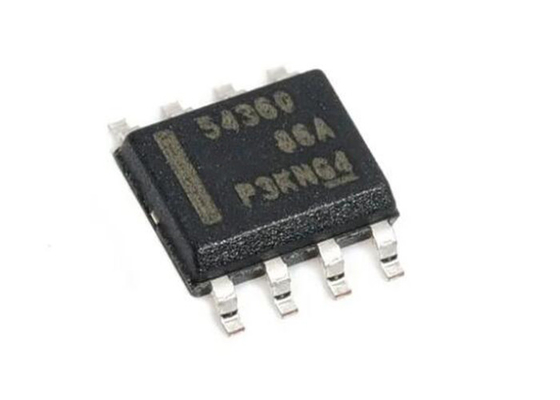

Product Photo Of TPS54360BQDDAQ1

60V Automobile Chips TPS54360BQDDAQ1 3.5A High Side MOSFET Step Down Regulator IC 1



​FAQ

Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
