TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC with 60V Input 3.5A Output and 100kHz to 2.5MHz Switching Frequency

TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC with 60V Input 3.5A Output and 100kHz to 2.5MHz Switching Frequency
TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC with 60V Input 3.5A Output and 100kHz to 2.5MHz Switching Frequency
TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC with 60V Input 3.5A Output and 100kHz to 2.5MHz Switching Frequency TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC with 60V Input 3.5A Output and 100kHz to 2.5MHz Switching Frequency TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC with 60V Input 3.5A Output and 100kHz to 2.5MHz Switching Frequency

Large Image :  TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC with 60V Input 3.5A Output and 100kHz to 2.5MHz Switching Frequency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS54360BQDDARQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-PowerSOIC (0.154", 3.90mm Width)
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC with 60V Input 3.5A Output and 100kHz to 2.5MHz Switching Frequency

Description
Part Number: TPS54360BQDDARQ1 Voltage - Input (Min): 4.5V
Voltage - Input (Max): 60V Voltage - Output (Max): 58.8V
Current - Output: 3.5A Frequency - Switching: 100kHz ~ 2.5MHz
Highlight:

60V Input Integrated Circuit Chip

,

3.5A Output Switching Regulator IC

,

100kHz to 2.5MHz Switching Frequency Automobile Chip

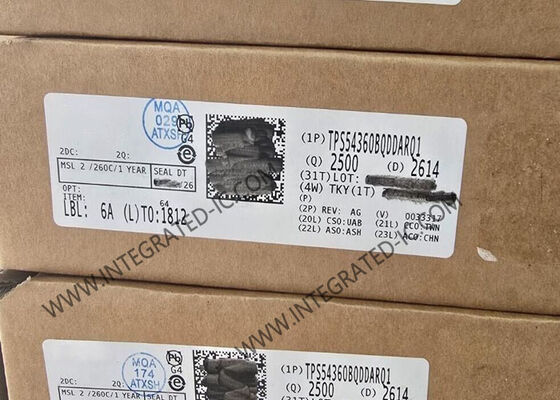

TPS54360BQDDARQ1 Integrated Circuit Chip Automobile Split Rail Switching Regulator IC PowerSOIC8
Product Overview Of TPS54360

TPS54360 is an automobile split rail switching regulator IC featuring undervoltage lockout internally set at 4.3V (adjustable via external resistor divider). The device provides controlled output voltage start-up ramp to eliminate overshoot during operation.

Specifications Of TPS54360
Part Number TPS54360 Operating Quiescent Current 146μA
Shutdown Current 2 μA Adjustable Switching Frequency 100kHz To 2.5MHz
Operating Temperature -40°C ~ 150°C (TJ) Topology Buck, Split Rail
Key Features Of TPS54360
  • Survives load dump pulses up to 65V
  • Low-ripple pulse-skip mode reduces no-load supply current to 146 μA
  • Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
  • 60V, 3.5A step-down regulator with integrated high-side MOSFET
  • Wide adjustable frequency range for efficiency or component size optimization
  • Frequency foldback and thermal shutdown for overload protection
  • Available in 8-pin thermally enhanced HSOP PowerPAD package
Applications Of TPS54360
  • Communications Power Systems
