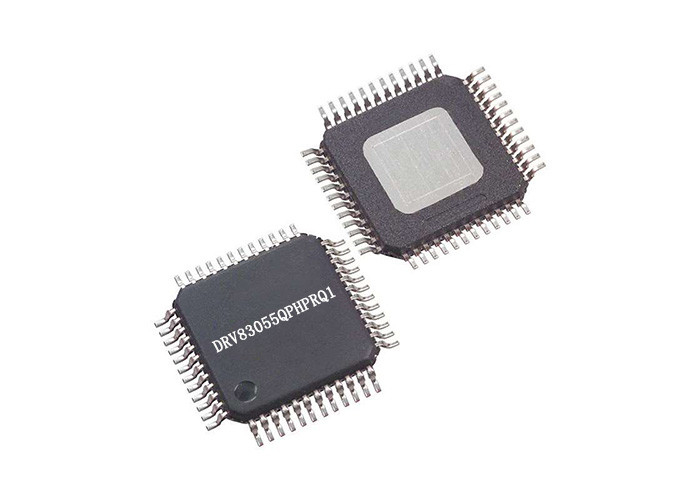

Automobile Chips DRV83055QPHPRQ1 Three-Phase Automotive Smart Gate Driver 48-HTQFP

Automobile Chips DRV83055QPHPRQ1 Three-Phase Automotive Smart Gate Driver 48-HTQFP

Product Description Of DRV83055QPHPRQ1

DRV83055QPHPRQ1 device is a gate driver IC for threephase motor-drive applications.The device provides three high-accuracy half-bridge drivers,each capable of driving a high-side and low-side N-channel MOSFET.A charge pump driver supports 100% duty cycle and low-voltage operation for cold crank situations.The device can tolerate load dump voltages up to 45V.

Specification Of DRV83055QPHPRQ1

Features Of DRV83055QPHPRQ1

• AEC-Q100 qualified for automotive applications

• 4.4-V to 45-V operating voltage

• 1.25-A and 1-A Peak gate drive currents

• Smart gate drive architecture (IDRIVE & TDRIVE)

• Programmable high- and low-side slew-rate control

• Charge-pump gate driver for 100% duty cycle

• Three integrated current-shunt amplifiers

• Integrated 50-mA LDO (3.3-V and 5-V option)

• 3-PWM or 6-PWM input control up to 200 kHz

• Single PWM-mode commutation capability

• Serial Peripheral Interface (SPI) for device settings and fault reporting

• Thermally-enhanced 48-Pin HTQFP

Applications Of DRV83055QPHPRQ1

• Three-phase BLDC and PMSM motors
• Automotive fuel and water pumps
• Automotive fans and blowers

Simplified Schematic Of DRV83055QPHPRQ1
