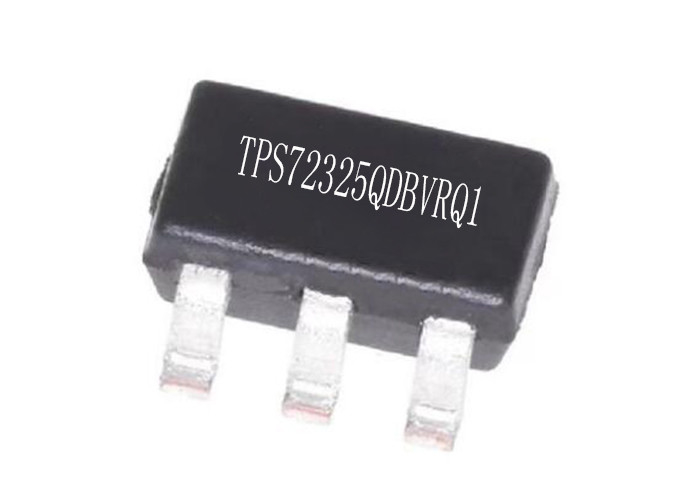

200mA Low Noise TPS72325QDBVRQ1 Low Dropout Linear Regulators Chip SOT-23-5

200mA Low Noise TPS72325QDBVRQ1 Low Dropout Linear Regulators Chip SOT-23-5​

Product Description Of TPS72325QDBVRQ1

TPS72325QDBVRQ1 low-dropout (LDO)negative voltage regulators offers an idealcombination of features to support low-noiseapplications. TPS72325QDBVRQ1 is capable of operating withinput voltages from –10 V to –2.7 V.

Specification Of TPS72325QDBVRQ1

Features Of TPS72325QDBVRQ1

• Ultralow Noise: 60 μVRMS Typical
• High PSRR: 65 dB Typical at 1kHz
• Low Dropout Voltage:280 mV Typical at 200 mA, 2.5 V
• Available in –2.5 V and Adjustable(–1.2 V to –10 V) Versions
• Stable With a 2.2-μF Ceramic Output Capacitor
• Less Than 2-μA Typical Quiescent Current inShutdown Mode
• 2% Overall Accuracy(Line, Load, Temperature)
• Thermal and Overcurrent Protection
• SOT23-5 (DBV) Package
• Operating Junction Temperature Range:–40°C to 125°C

Applications Of TPS72325QDBVRQ1

• Optical Drives
• Optical Networking
• Noise-Sensitive Circuitry
• GaAs FET Gate Bias
• Video Amplifier

Typical Application Circuit Of TPS72325QDBVRQ1
