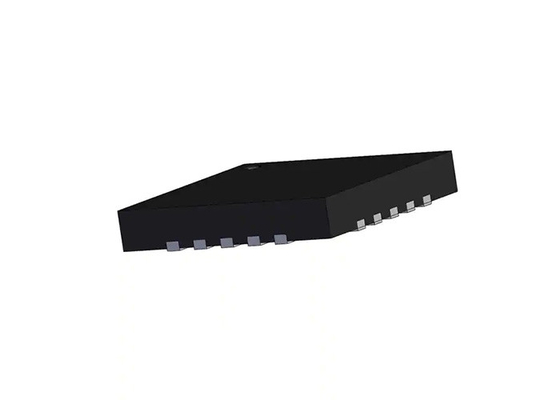

TPS7A5201WQRTKRQ1 2A High-Accuracy Automotive-Grade Low-Noise LDO Voltage Regulator

TPS7A5201WQRTKRQ1 2A High-Accuracy Automotive-Grade Low-Noise LDO Voltage Regulator

Product Description Of TPS7A5201WQRTKRQ1

TPS7A5201WQRTKRQ1 is a low-noise (4.4 µVRMS),low-dropout linear regulator (LDO) capable of sourcing 2 A with only 115 mV of maximum dropout.The device output voltage is adjustable from 0.8 V to 5.2 V using an external resistor divider.

Specification Of TPS7A5201WQRTKRQ1

Features Of TPS7A5201WQRTKRQ1

• Adjustable Output Voltage Range: 0.8 V to 5.2 V

• Low Dropout: 115 mV (max) at 2 A With BIAS

• Output Voltage Noise: 4.4 µVRMS

• 1% (max) Accuracy Over Line, Load, and Temperature With BIAS

• Power-Supply Ripple Rejection:– 40 dB at 500 kHz

• Adjustable Soft-Start Inrush Control

• Open-Drain, Power-Good (PG) Output

Applications Of TPS7A5201WQRTKRQ1

• Telematic Control Units

• Infotainment and Clusters

• High-Speed Interfaces (PLL and VCO)

Powering RF Components Of TPS7A5201WQRTKRQ1

​FAQ

Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
