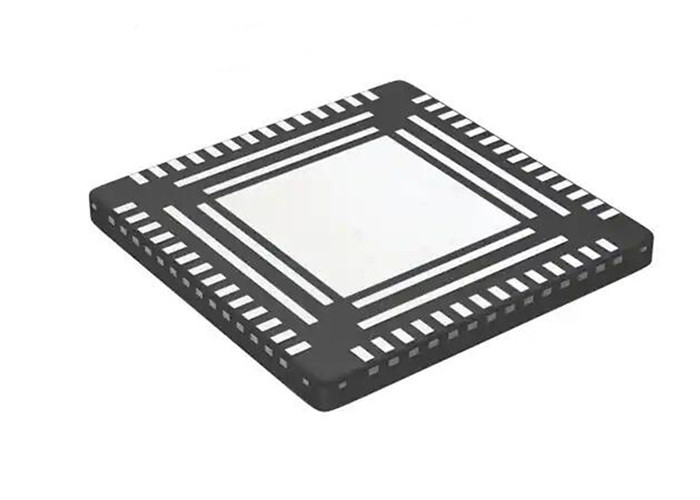

5V Integrated Circuit Chip DP83847ALQA56A Ethernet Transceiver Chip WQFN56

5V Integrated Circuit Chip DP83847ALQA56A Ethernet Transceiver Chip WQFN56

Product Description Of DP83847ALQA56A

DP83847ALQA56A is a full feature single Physical Layer devicewith integrated PMD sublayers to support both 10BASE-Tand 100BASE-TX Ethernet protocols over Category 3 (10Mb/s) or Category 5 unshielded twisted pair cables.
DP83847ALQA56A is designed for easy implementation of10/100 Mb/s Ethernet home or office solutions. It interfacesto Twisted Pair media via an external transformer.
DP83847ALQA56A interfaces directly to MAC devices through the IEEE802.3u standard Media Independent Interface (MII) ensur-ing interoperability between products from different ven-dors.

Specification Of DP83847ALQA56A

Features Of DP83847ALQA56A

• Low-power 3.3V, 0.18µm CMOS technology
• Power consumption < 351mW (typical)
• 5V tolerant I/Os
• 5V/3.3V MAC interface
• IEEE 802.3 ENDEC, 10BASE-T transceivers and filters
• IEEE 802.3u PCS, 100BASE-TX transceivers and filters
• IEEE 802.3 compliant Auto-Negotiation
• Output edge rate control eliminates external filtering for Transmit outputs
• BaseLine Wander compensation
• IEEE 802.3u MII (16 pins/port)
• LED support (Link, Rx, Tx, Duplex, Speed, Collision)
• Single register access for complete PHY status
• 10/100 Mb/s packet loopback BIST (Built in Self Test)
• 56-pin LLP package (9w) x (9l) x (.75h) mm

Applications Of DP83847ALQA56A

• LAN on Motherboard
• Embedded Applications

System Diagram Of DP83847ALQA56A
