28V Integrated Circuit Chip TLE9263BQX Multiple LIN Transceiver IC VFQFN48

28V Integrated Circuit Chip TLE9263BQX Multiple LIN Transceiver IC VFQFN48​

Product Description Of TLE9263BQX

TLE9263BQX Body System IC with Integrated Voltage Regulators, Power Management Functions, HS-CAN Transceiver, supporting CAN FD and Multiple LIN Transceiver. Featuring Multiple High-Side Switches and High-Voltage Wake Inputs.

Specification Of TLE9263BQX

Features Of TLE9263BQX

• Two integrated Low-Drop Voltage Regulators: Main regulator with 5 V up to 250 mA (3.3 V variant available) and auxiliary regulator (5 V up to 100 mA) with off-board usage protection
• Voltage regulator (5 V or 3.3 V selectable) with external PNP transistor configurable for off-board usage or for load sharing
• 1 high-speed CAN transceiver supporting FD communication up to 5 Mbit/s according to ISO 11898-2:2016 & SAE J2284 (Partial Networking option available)
• 2 LIN transceivers supporting LIN 2.2/ISO 17987-4/SAE J2602
• 4 high-side outputs 7 Ω typ., 2 HV GPIOs, 3 HV wake inputs
• Integrated fail-safe and supervision functions, e.g. fail-safe, watchdog, interrupt- and reset outputs
• 16-bit SPI for configuration and diagnostics

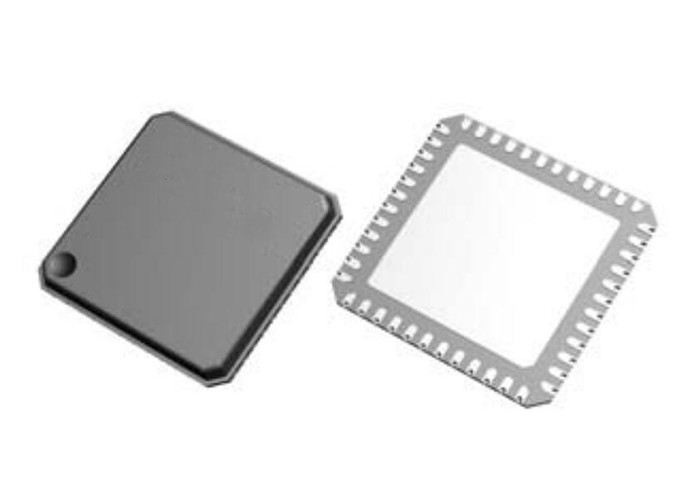

Product Photo Of​ TLE9263BQX

Other Supply Product Types

​FAQ

Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
