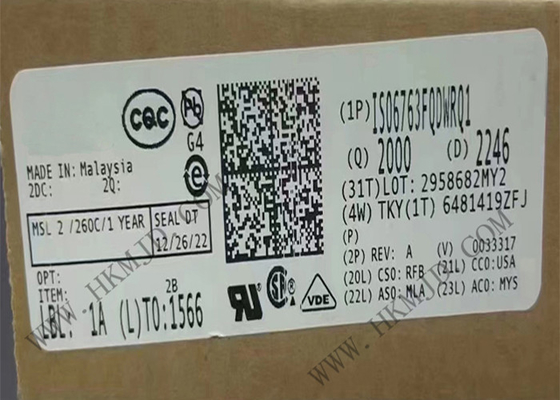

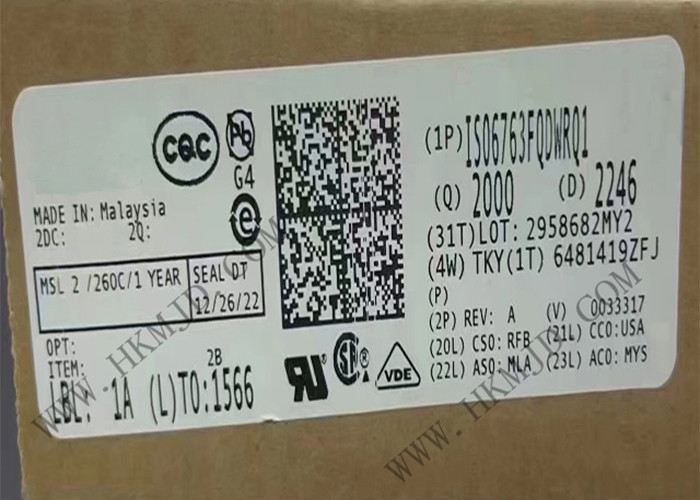

Integrated Circuit Chip ISO6763FQDWRQ1 Six Channel Digital Isolators SOIC16

Integrated Circuit Chip ISO6763FQDWRQ1 Six Channel Digital Isolators SOIC16​

Product Description Of ISO6763FQDWRQ1

ISO6763FQDWRQ1 is high-performance, six-channel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation
ratings per UL 1577. These devices are also certified by VDE, TUV, CSA, and CQC. ISO6763FQDWRQ1 provide high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os.

Product Attributes Of ISO6763FQDWRQ1

Feature Of ISO6763FQDWRQ1

• Meets VDA320 isolation requirements
• 50 Mbps data rate
• Robust isolation barrier:
• High lifetime at 1500 VRMS working voltage
• Up to 5000 VRMS isolation rating
• Up to 10 kV surge capability
• ±150 kV/μs typical CMTI
• Wide supply range: 1.71 V to 1.89 V and 2.25 V to 5.5 V
• 1.71 V to 5.5 V level translation
• 1.6 mA per channel typical at 1 Mbps
• Low propagation delay: 11 ns typical
• Robust electromagnetic compatibility (EMC)
• System-level ESD, EFT, and surge immunity
• Low emissions

Applications Of ISO6763FQDWRQ1

• Battery management system (BMS)
• On-board charger
• Inverter and motor control

Pin Configuration Of ISO6763FQDWRQ1

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
