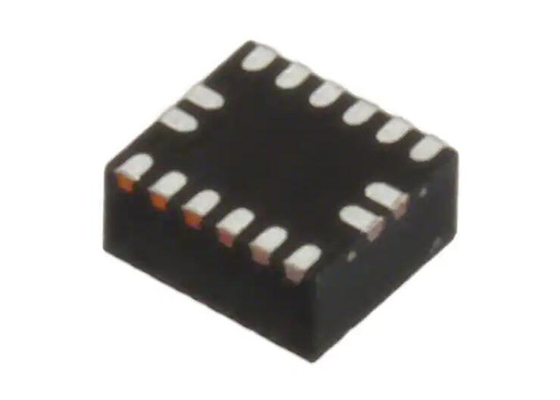

Integrated Circuit Chip EP5358LUI Step Down DC DC Switching Converter 600mA

Integrated Circuit Chip EP5358LUI Step Down DC DC Switching Converter 600mA

Product Description Of EP5358LUI

EP5358LUI (x = L or H) is rated for up to 600mA of continuous output current. EP5358LUI integrates MOSFET switches, control, compensation, and the magnetics in an advanced 2.5mm x 2.25mm micro-QFN Package.
EP5358LUI uses a 3-pin VID to easily select the output voltage setting. Output voltage settings are available in 2 optimized ranges providing coverage for typical VOUT settings.

Product Attributes Of EP5358LUI

Feature Of EP5358LUI

• Integrated Inductor Technology
• -40°C to +85°C Ambient Temperature Range
• 2.5mm x 2.25mm x 1.1mm uQFN Package
• Total Solution Footprint 14mm2
• Low VOUT Ripple for RF Compatibility
• High Efficiency, Up to 93%
• Up to 600mA Continuous Output Current
• 5 MHz Switching Frequency
• 3 pin VID for Glitch Free Voltage Scaling
• VOUT Range 0.6V to VIN – 0.25V
• Short Circuit and Over Current Protection
• UVLO and Thermal Protection
• IC Level Reliability in a PowerSOC Solution

Applications Of EP5358LUI

• Wireless and RF Applications
• Wireless Broad Band Data Cards
• Small Form Factor Optical Modules
• Low Noise FPGA IO and Transceivers
• Advanced Low Power Processors, DSP, IO, Memory, Video, Multimedia Engines

Simplified Applications Circuit Of EP5358LUI​
