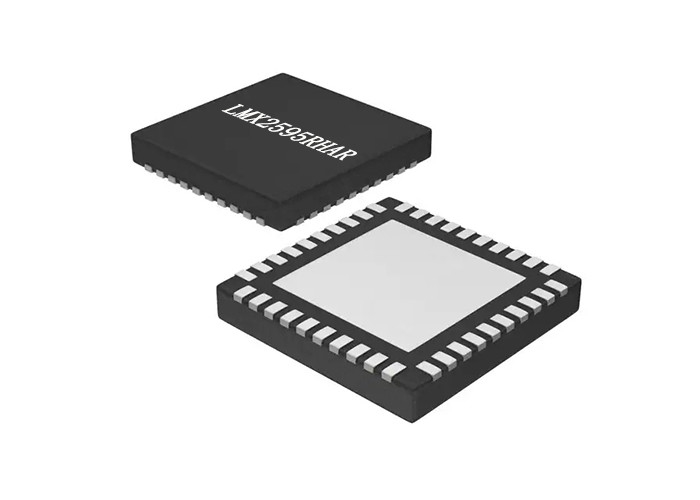

LMX2595RHAR 20GHz Wideband RF Synthesizer With Phase Synchronization Support

LMX2595RHAR 20GHz Wideband RF Synthesizer With Phase Synchronization Support

Product Description Of LMX2595RHAR

LMX2595RHAR high-performance, wideband synthesizer that can generate any frequency from 10MHz to 20 GHz.An integrated doubler is used for frequencies above 15 GHz. The high-performance PLL with figure of merit of –236 dBc/Hz and highphase detector frequency can attain very low in-band noise and integrated jitter. The high-speed N-divider has no pre-divider, thus significantly reducing the amplitude and number of spurs. There is also a programmable input multiplier to mitigate integer boundary spurs.

Specification Of LMX2595RHAR

Feature Of LMX2595RHAR

• 10-MHz to 20-GHz output frequency

• –110 dBc/Hz phase noise at 100-kHz offset with 15-GHz carrier

• 45-fs rms jitter at 7.5 GHz (100 Hz to 100 MHz)

• Programmable output power

• PLL key specifications

• Figure of merit: –236 dBc/Hz

Applications Of LMX2595RHAR

• 5G and mm-Wave wireless infrastructure

• Test and measurement equipment

• Radar

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
