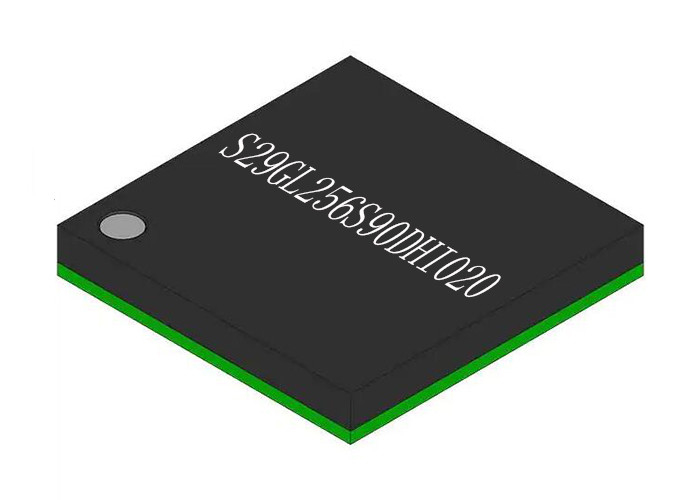

256Mbit Integrated Circuit Chip S29GL256S90DHI020 FLASH NOR Memory IC FBGA64

256Mbit Integrated Circuit Chip S29GL256S90DHI020 FLASH NOR Memory IC FBGA64​

Product Description Of S29GL256S90DHI020

S29GL256S90DHI020 is MIRRORBIT™ Eclipse flash products fabricated on 65-nm process technology. S29GL256S90DHI020 offer a fast page access time as fast as 15 ns with a corresponding random access time as fast as 90 ns.

Specification Of S29GL256S90DHI020

Feature Of S29GL256S90DHI020

• CMOS 3.0 V core with versatile I/O
• 65 nm MIRRORBIT™ Eclipse technology
• Single supply (VCC) for read / program / erase (2.7 V to 3.6 V)
• Wide I/O voltage range (VIO): 1.65 V to VCC
• Asynchronous 32-byte page read
• 512-byte programming buffer
• Programming in page multiples, up to a maximum of 512 bytes
• Single word and multiple program on same word options
• Automatic error checking and correction (ECC) – internal hardware ECC with single bit error correction
• Uniform 128-kbyte sectors
• Suspend and resume commands for program and erase operations
• Status register, data polling, and ready/busy pin methods to determine device status

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
