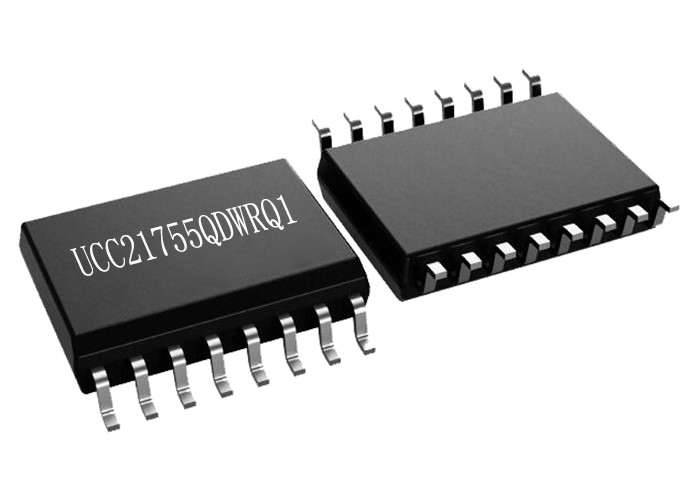

Automobile Chips UCC21755QDWRQ1 Galvanic Isolated Single Channel Gate Driver SOIC16

Automobile Chips UCC21755QDWRQ1 Galvanic Isolated Single Channel Gate Driver SOIC16

Product Description Of UCC21755QDWRQ1

Specification Of UCC21755QDWRQ1

Feature Of UCC21755QDWRQ1

• SiC MOSFETs and IGBTs up to 2121 Vpk
• 33-V maximum output drive voltage (VDD-VEE)
• ±10-A drive strength and split output
• 150-V/ns minimum CMTI
• 200-ns response time fast DESAT protection with 5-V threshold
• 4-A internal active Miller clamp
• 400-mA soft turn-off when fault happens
• Isolated analog sensor with PWM output for
• Temperature sensing with NTC, PTC, or thermal diode
• High voltage DC-link or phase voltage
• 12-V VDD UVLO with power good on RDY
• Inputs/outputs with over- or under-shoot transient voltage immunity up to 5 V
• 130-ns (maximum) propagation delay and 30-ns (maximum) pulse/part skew
• SOIC-16 DW package with creepage and clearance distance > 8mm
• Operating junction temperature –40°C to 150°C

Applications Of UCC21755QDWRQ1

• Traction inverter for EVs
• On-board charger and charging pile
• DC/DC converter for HEV/EVs

Pin Configuration Of UCC21755QDWRQ1​

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
