933MHz Integrated Circuit Chip MT41K512M16VRN-107 IT:P 8Gbit Memory IC 96FBGA

933MHz Integrated Circuit Chip MT41K512M16VRN-107 IT:P 8Gbit Memory IC 96FBGA

Product Description Of MT41K512M16VRN-107 IT:P

MT41K512M16VRN-107 IT:P The TwinDie DDR3L SDRAM is a high-speed, CMOS dynamic random access memory device internally configured as two 8-bank DDR3L SDRAM devices.
MT41K512M16VRN-107 IT:P Although each die is tested individually within the dual-die package, some TwinDie test results may vary from a like die tested within a monolithic die package.
MT41K512M16VRN-107 IT:P The DDR3L SDRAM uses a double data rate architecture to achieve high-speed operation. The double data rate architecture is an 8n-prefetch architecture with an interface designed to transfer two data words per clock cycle at the I/O balls.

Specification Of MT41K512M16VRN-107 IT:P

Features Of​ MT41K512M16VRN-107 IT:P

• VDD = VDDQ = 1.35V (1.283–1.45V)
• Backward compatible to VDD = VDDQ = 1.5V ±0.075V
• Differential bidirectional data strobe
• 8n-bit prefetch architecture
• Differential clock inputs (CK, CK#)
• 8 internal banks
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Programmable CAS (READ) latency (CL)
• Programmable posted CAS additive latency (AL)
• Programmable CAS (WRITE) latency (CWL)
• Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode register set [MRS])
• Selectable BC4 or BL8 on-the-fly (OTF)

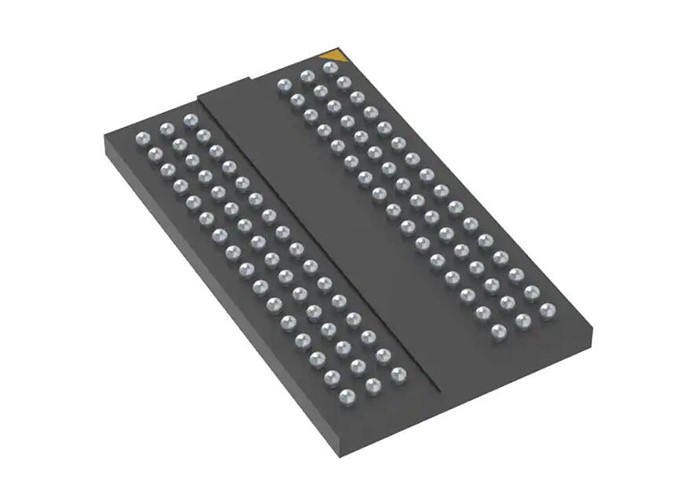

Package Of MT41K512M16VRN-107 IT:P
