XC7Z020-3CLG484E Field Programmable Gate Array with 85K Logic Cells and 2 Core Zynq-7000 System On Chip DDR3 1333 MB/s

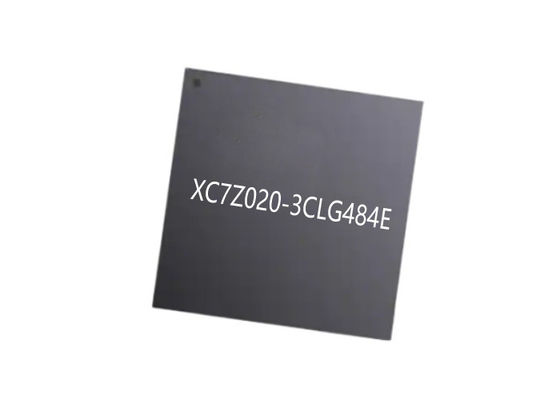

Large Image : XC7Z020-3CLG484E Field Programmable Gate Array with 85K Logic Cells and 2 Core Zynq-7000 System On Chip DDR3 1333 MB/s

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	XC7Z020-3CLG484E

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	CSBGA-484
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

XC7Z020-3CLG484E Field Programmable Gate Array with 85K Logic Cells and 2 Core Zynq-7000 System On Chip DDR3 1333 MB/s

Description

Part Number:	XC7Z020-3CLG484E	Series:	Zynq®-7000
Number Of Logic Array Blocks - LABs:	6650 LAB	L1 Cache Instruction Memory:	2 X 32 KB
Minimum Operating Temperature:	0 C	Maximum Operating Temperature:	+ 100 C
Part Number:	XC7Z020-3CLG484E	Series:	Zynq®-7000
Number Of Logic Array Blocks - LABs:	6650 LAB	L1 Cache Instruction Memory:	2 X 32 KB
Minimum Operating Temperature:	0 C	Maximum Operating Temperature:	+ 100 C
Highlight:	85K Logic Cells Field Programmable Gate Array , 2 Core Zynq-7000 System On Chip , DDR3 1333 MB/s FPGA

XC7Z020-3CLG484E Field Programmable Gate Array

The XC7Z020-3CLG484E is a high-performance System on Chip featuring 2 cores and 85K logic cells as part of the Zynq-7000 family, combining FPGA flexibility with ARM processor performance.

Product Overview

This multi-protocol DDR memory controller supports 16-bit or 32-bit-wide accesses to a 1 GB address space using single rank configurations of 8-bit, 16-bit or 32-bit DRAM memories. ECC is supported in 16-bit bus access mode. The Processing System incorporates both the DDR controller and associated PHY, including dedicated I/Os.

Technical Specifications

Part Number	XC7Z020-3CLG484E	DSP Slices	66
Product Category	SoC FPGA	Instruction Memory	2 x 32 kB
Cache Data Memory	2 x 32 kB	Logic Elements	85000 LE

Key Features

One 64-bit port dedicated for ARM CPU(s) via L2 cache controller with low latency configuration
Two 64-bit ports dedicated for PL access
One 64-bit AXI port shared by all other AXI masters via central interconnect
8-bit SRAM data bus supporting up to 64 MB
8-bit parallel NOR flash supporting up to 64 MB
ONFi 1.0 NAND flash support with 1-bit ECC
1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash

Applications

Multi-Axis Motor Control
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
